MAX9093AKA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX9093AKA+T - Analogue Comparator, Low Voltage, General Purpose, 2 Comparators, 110 ns, 1.8V to 5.5V, SOT-23

Download MAX9093AKA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

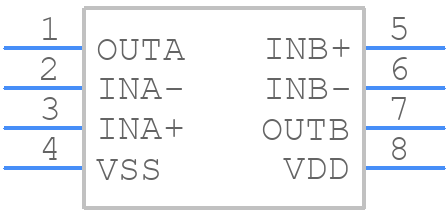

Symbol
MAX9093AKA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9093AKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8+5
click to zoom
3D Models
MAX9093AKA+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8+5
click to zoom

MAX9093AKA+T Details

  • Manufacturer Part Number:

    MAX9093AKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-08-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.4 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Input Offset Voltage-Max:

    9000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    120 ns

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.8 mm

MAX9093AKA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9093AKA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces as short as possible.
  • To ensure proper power-up and initialization, it's recommended to follow a power-up sequence where the VCC supply is applied before the input signals. The device also requires a minimum of 1ms power-up time to allow the internal voltage regulators to settle. Additionally, the EN pin should be tied high to enable the device.
  • The MAX9093AKA+T can handle input voltages up to 6V without damage, but it's recommended to keep the input voltage within the specified operating range of 0V to 5.5V to ensure optimal performance and accuracy.
  • To troubleshoot issues with the MAX9093AKA+T, start by checking the power supply and input signals to ensure they are within the specified operating range. Verify that the device is properly powered up and initialized, and check for any layout or routing issues on the PCB. Use an oscilloscope to measure the output voltage and input signals to identify any anomalies or oscillations.
  • The MAX9093AKA+T is rated for operation up to 125°C, but its performance and accuracy may degrade at higher temperatures. It's recommended to derate the device's performance and accuracy at higher temperatures, and to ensure that the device is properly heat-sinked to prevent overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9093AKA+T Overview

Use the download button to access the MAX9093AKA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX90, or try a keyword search, such as Comparators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
