MAX9094ASD+T - Analog Devices

Description: Guaranteed +1.8V to +5.5V Performance-40°C to +125°C Automotive Temperature RangeLow Supply Current (65µA/Channel at VDD = +5.0V)Input Common-Mode Voltage Range Includes GroundNo Phase Reversal for Overdriven InputsLow Output Saturation Voltage (120mV)Internal 2mV Hysteresis (MAX9093/MAX9095)Fast 100ns Propagation DelayOpen-Drain Outputs8-Pin SOT23/µMAX Package and 14-Pin TSSOP/SO Package

Download MAX9094ASD+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

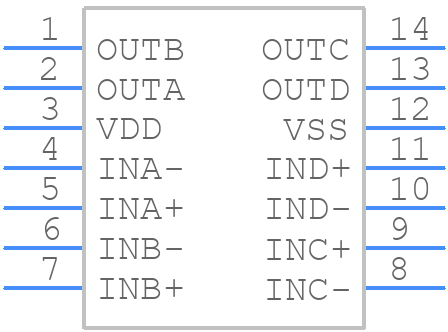

MAX9094ASD+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9094ASD+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S14+1
click to zoom
3D Models
MAX9094ASD+T - Analog Devices - 3D model - Small Outline Packages - S14+1
click to zoom

MAX9094ASD+T Details

  • Manufacturer Part Number:

    MAX9094ASD+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-SOIC_N-150_MIL

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-08-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.4 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Input Offset Voltage-Max:

    9000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    120 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX9094ASD+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9094ASD+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input traces as short as possible.
  • To ensure proper power-up and initialization, it's recommended to follow a power-up sequence where the VCC supply is applied before the digital inputs. Additionally, the device should be reset by pulling the RESET pin low for at least 10ns after power-up.
  • The maximum allowed input voltage for the MAX9094ASD+T is 5.5V. To protect the device from overvoltage, it's recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode at the input pins.
  • To optimize the MAX9094ASD+T for low-power operation, it's recommended to use a low-power mode, reduce the clock frequency, and minimize the input signal amplitude. Additionally, the device can be powered down by pulling the SHDN pin low.
  • The recommended clock frequency for the MAX9094ASD+T is between 1MHz and 50MHz. A higher clock frequency can improve the device's conversion rate and bandwidth, but it also increases power consumption and can affect the device's noise performance.
