Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
1999-05-24
Manufacturer:
Analog Devices Inc
YTEOL:
9
Amplifier Type:
COMPARATOR
Average Bias Current-Max (IIB):
8 µA
Bias Current-Max (IIB) @25C:
5 µA
Input Offset Voltage-Max:
3000 µV
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
9.9 mm
Moisture Sensitivity Level:
1
Neg Supply Voltage Limit-Max:
-7 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Functions:
2
Number of Terminals:
16
Operating Temperature-Max:
70 °C
Output Type:
PUSH-PULL
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Response Time-Nom:
10 ns
Seated Height-Max:
1.75 mm
Supply Current-Max:
10 mA
Supply Voltage Limit-Max:
7 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm
MAX912CSE+ Frequently Asked Questions (FAQs)
The MAX912CSE+ requires careful layout and routing to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and avoiding vias under the device. Additionally, it is recommended to use a low-ESR capacitor for the bypass capacitor and to place it as close as possible to the device.
To ensure the MAX912CSE+ is properly powered and biased, it is recommended to follow the power supply and biasing guidelines provided in the datasheet. This includes using a clean and stable power supply, ensuring the input voltage is within the recommended range, and providing a stable bias voltage to the device. Additionally, it is recommended to use a voltage regulator to regulate the power supply voltage and to decouple the power supply lines with capacitors.
The MAX912CSE+ is a high-speed, low-power comparator that can be used in a variety of applications, including data acquisition systems, medical devices, industrial control systems, and automotive systems. It is particularly useful in applications that require high-speed comparison, low power consumption, and low noise. Some common use cases include signal conditioning, threshold detection, and level shifting.
To troubleshoot common issues with the MAX912CSE+, it is recommended to follow a systematic approach, including checking the power supply and biasing, verifying the input signals, and checking the output state. Additionally, it is recommended to use oscilloscopes and logic analyzers to visualize the input and output signals and to identify any issues. In cases of oscillations, it may be necessary to add additional capacitance or resistance to the input or output lines to dampen the oscillations.
The MAX912CSE+ is a high-speed, low-power comparator that offers several key advantages over other similar comparators from Analog Devices Inc. These include a faster response time, lower power consumption, and a wider input common-mode range. Additionally, the MAX912CSE+ has a lower input offset voltage and a higher input impedance than some other comparators, making it more suitable for certain applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAX912CSE+ Overview

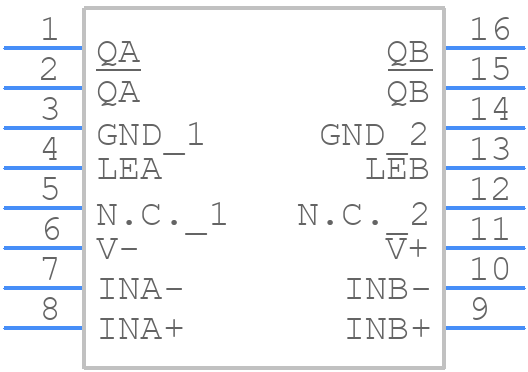

Use the download button to access the MAX912CSE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX91,
