MAX9176EUB+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX9176EUB+ - Analog Multiplexer, 2:1, 1 Circuit, 3V to 3.6V, µMAX-10

Download MAX9176EUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

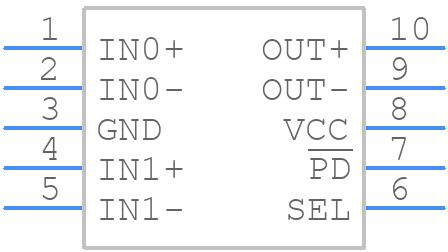

MAX9176EUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9176EUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2_
click to zoom
3D Models
MAX9176EUB+ - Analog Devices - 3D model - Small Outline Packages - U10+2_
click to zoom

MAX9176EUB+ Details

  • Manufacturer Part Number:

    MAX9176EUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-02-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Delay-Max:

    3.31 ns

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LVDS TO LVDS TRANSLATOR

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.20,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX9176EUB+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9176EUB+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the device should be placed near the power source to minimize power trace inductance.
  • The output capacitor should be chosen based on the output voltage ripple requirement, output current, and operating frequency. A general rule of thumb is to use a capacitor with a value between 10uF to 22uF, with a voltage rating of at least 2x the output voltage. X5R or X7R ceramic capacitors are recommended due to their low ESR and high ripple current capability.
  • The MAX9176EUB+ can handle input voltages up to 42V, but it's recommended to keep the input voltage below 36V to ensure reliable operation and to prevent damage to the device.
  • The MAX9176EUB+ has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor divider network. The resistor values should be chosen such that the OCSET pin voltage is between 0.5V and 2.5V. The device will shut down when the output current exceeds the set limit.
  • The thermal derating curve for the MAX9176EUB+ is not explicitly stated in the datasheet, but it can be estimated based on the device's power dissipation and thermal resistance. As a general rule, the device's output current should be derated by 1% for every 1°C increase in ambient temperature above 25°C.
