MAX9201EUE+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX9201EUE+T - Analogue Comparator, High Speed, 4 Comparators, 9 ns, 5V to 10V, ± 4.75V to ± 5.25V, TSSOP, 16 Pins

Download MAX9201EUE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

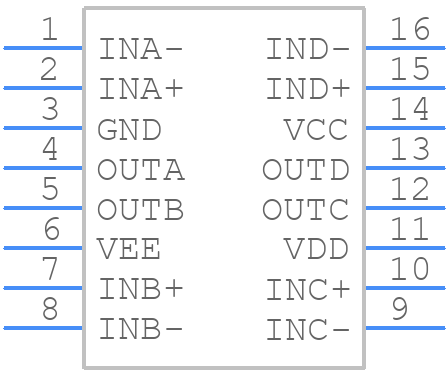

Symbol
MAX9201EUE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9201EUE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin TSSOP-
click to zoom
3D Models
MAX9201EUE+T - Analog Devices - 3D model - Small Outline Packages - 16-Pin TSSOP-
click to zoom

MAX9201EUE+T Details

  • Manufacturer Part Number:

    MAX9201EUE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    ROHS COMPLIANT, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-04-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    7 µA

  • Bias Current-Max (IIB) @25C:

    5 µA

  • Input Offset Voltage-Max:

    7500 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    7 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX9201EUE+T Frequently Asked Questions (FAQs)

  • A good PCB layout practice for the MAX9201EUE+T is to keep the input and output traces as short as possible, use a solid ground plane, and keep the power supply decoupling capacitors close to the device. Additionally, it's recommended to use a shielded cable for the HDMI input and output connectors to reduce EMI.
  • To ensure proper power-up and configuration, it's recommended to follow the power-up sequence outlined in the datasheet, which includes powering up the VCC and VCCA pins simultaneously, and then configuring the device through the I2C interface. Additionally, it's recommended to use a reset circuit to ensure the device is properly reset during power-up.
  • The MAX9201EUE+T can support HDMI cable lengths up to 30 meters at 6 Gbps, but this can vary depending on the quality of the cable and the specific application. It's recommended to use high-quality HDMI cables and to test the system with the specific cable lengths and configurations used in the application.
  • To troubleshoot issues with the MAX9201EUE+T, it's recommended to use a logic analyzer or oscilloscope to monitor the HDMI signals and I2C bus activity. Additionally, it's recommended to check the device's configuration registers and status bits to ensure the device is properly configured and not reporting any errors.
  • The MAX9201EUE+T has a maximum junction temperature of 150°C, and it's recommended to keep the device's operating temperature below 125°C to ensure reliable operation. To manage thermal issues, it's recommended to use a heat sink or thermal pad on the device, and to ensure good airflow around the device. Additionally, it's recommended to follow the thermal design guidelines outlined in the datasheet.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9201EUE+T Overview

Use the download button to access the MAX9201EUE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX92, or try a keyword search, such as Comparators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
