MAX9295DGTM/V+T - Analog Devices

Description: Dual 4-Lane MIPI CSI-2 v1.3 Ports • MIPI D-PHY v1.2 at 80Mbps - 2.5Gbps per Lane • 4-Channel CSI-2 Virtual-Channel Support • Support for RAW8/10/12/14/16/20, RGB565/666/ 888 and YUV8-/10-Bit Data Types • CSI-2 Inputs in GMSL2 Mode Accept Cameras with Different Video Timing and Resolution • CSI-2 ECC and Checksum Error Detection and Flagging • CSI-2 Lane Reassignment and Polarity Flip

Download MAX9295DGTM/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

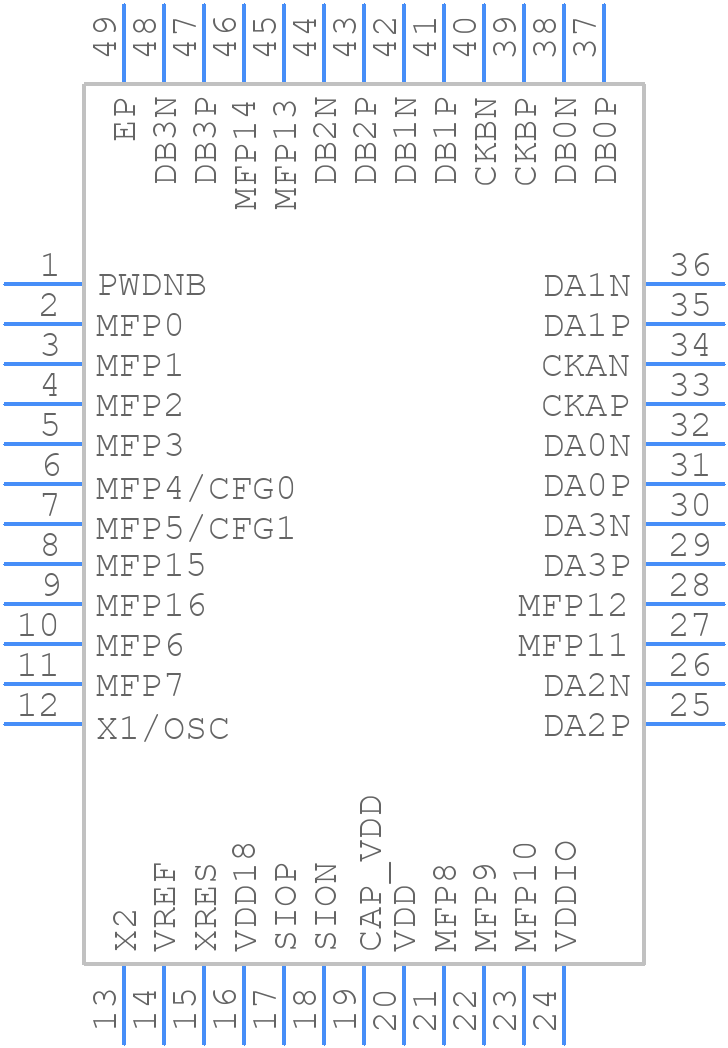

MAX9295DGTM/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9295DGTM/V+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48 TQFN-EP
click to zoom
3D Models
MAX9295DGTM/V+T - Analog Devices - 3D model - Quad Flat No-Lead - 48 TQFN-EP
click to zoom

MAX9295DGTM/V+T Details

  • Manufacturer Part Number:

    MAX9295DGTM/V+T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFN-48

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX9295DGTM/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX9295DGTM/V+T. Ensure that the device is placed near the power supply, and use a solid ground plane to reduce noise. Keep the input and output traces short and separate to minimize crosstalk. Use a 4-layer PCB with a dedicated power plane and a dedicated ground plane for best results.
  • The input capacitor value depends on the input voltage, output voltage, and desired output ripple. A general rule of thumb is to choose a capacitor with a value between 1uF to 10uF, with a voltage rating at least 1.5 times the input voltage. For example, for a 12V input, use a 16V or 25V rated capacitor.
  • The maximum output current of the MAX9295DGTM/V+T is 2A. However, it's recommended to derate the output current based on the ambient temperature and the input voltage. Refer to the datasheet's thermal derating curves and output current vs. input voltage graphs for more information.
  • The MAX9295DGTM/V+T has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the output pin and the GND pin. The device will detect the current through Rs and limit the output current to prevent damage. Choose Rs based on the desired overcurrent threshold and the output voltage.
  • The EN (enable) pin is used to turn the device on or off. When EN is high, the device is enabled, and when EN is low, the device is disabled. You can use the EN pin to implement power sequencing, shutdown, or low-power modes in your system. Connect EN to a logic signal or a voltage source, and ensure it meets the specified voltage and timing requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9295DGTM/V+T Overview

Use the download button to access the MAX9295DGTM/V+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX92, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
