MAX9376EUB+ - Analog Devices

Description: Maxim MAX9376EUB+, Logic Level Translator, Translator, LVDS to LVPECL, LVPECL to LVDS, LVPECL, 10-Pin μMAX

Download MAX9376EUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

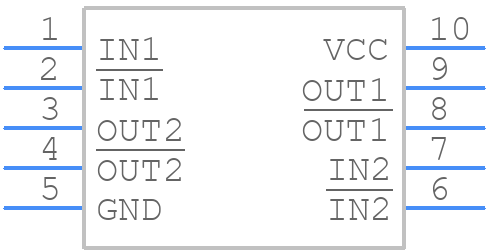

Symbol
MAX9376EUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9376EUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - umax 10pin
click to zoom
3D Models
MAX9376EUB+ - Analog Devices - 3D model - Small Outline Packages - umax 10pin
click to zoom

MAX9376EUB+ Details

  • Manufacturer Part Number:

    MAX9376EUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    ROHS COMPLIANT, MICRO MAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-06-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Delay-Max:

    0.6 ns

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LVDS TO PECL TRANSLATOR

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX9376EUB+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX9376EUB+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 10uF capacitor.
  • To optimize the performance of the MAX9376EUB+ in high-frequency applications, it's recommended to use a low-jitter clock source, to minimize the length of the clock signal traces, and to use a shielded cable for the clock signal. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 10uF capacitor.
  • The maximum operating temperature range for the MAX9376EUB+ is -40°C to +125°C. However, it's recommended to operate the device within the -20°C to +85°C range for optimal performance and reliability.
  • To troubleshoot issues with the MAX9376EUB+, it's recommended to check the power supply voltage, clock signal, and data signal integrity. Additionally, it's recommended to check for any signs of overheating, such as excessive current consumption or thermal shutdown. It's also recommended to consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the MAX9376EUB+ is compatible with lead-free soldering. However, it's recommended to follow the recommended soldering profile and to use a soldering iron with a temperature range of 220°C to 240°C.
