MAX9392EHJ+ - Analog Devices

Description: Analog & Digital Crosspoint ICs Anything-to-LVDS Dual 2 x 2 Crosspoint S

Download MAX9392EHJ+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

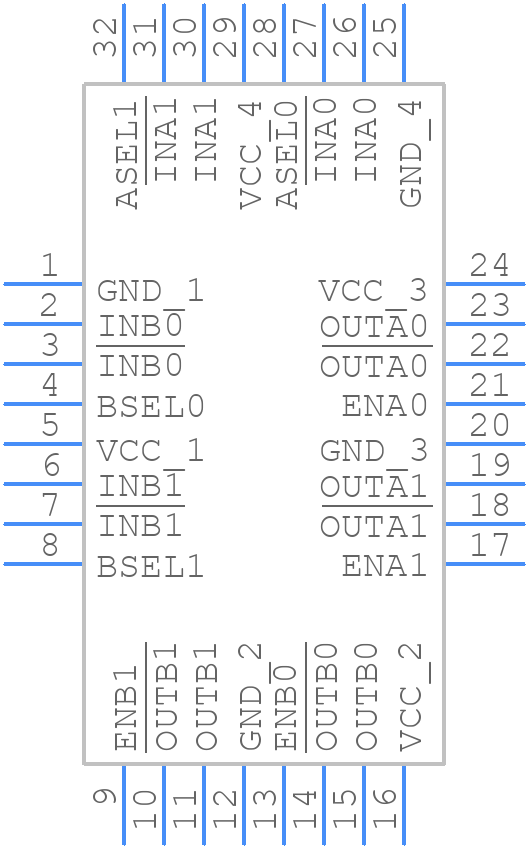

MAX9392EHJ+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9392EHJ+ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 32TQFP
click to zoom
3D Models
MAX9392EHJ+ - Analog Devices - 3D model - Quad Flat Packages - 32TQFP
click to zoom

MAX9392EHJ+ Details

  • Manufacturer Part Number:

    MAX9392EHJ+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    32-TQFP-5X5X1.0

  • Package Description:

    5 X 5 MM, 1 MM HEIGHT, LEAD FREE, MS-026, TQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-TQFP-5X5X1.0

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-08-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP32,.28SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    98 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    0.555 ns

  • Switch-on Time-Max:

    0.574 ns

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX9392EHJ+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9392EHJ+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the device should be placed near the connector to minimize the length of the input traces.
  • To ensure proper power-up and power-down of the MAX9392EHJ+, the power supply should be ramped up slowly (typically 1-2ms) to prevent inrush currents. The device should also be powered down slowly to prevent damage. It is recommended to use a soft-start circuit or a power sequencer to control the power-up and power-down sequence.
  • The MAX9392EHJ+ is rated for operation from -40°C to +85°C. However, the device's performance may degrade at higher temperatures, and it is recommended to derate the device's performance accordingly. It is also important to ensure proper thermal management, such as using a heat sink or a thermal pad, to prevent overheating.
  • To troubleshoot issues with the MAX9392EHJ+, start by checking the power supply and ensuring that it is within the recommended range. Verify that the input signals are within the specified range and that the device is properly configured. Use an oscilloscope to check the output signals and look for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for troubleshooting guides and contact Analog Devices' technical support for further assistance.
  • Yes, the MAX9392EHJ+ is suitable for use in high-reliability or high-availability applications. The device is built with high-reliability materials and is designed to meet the requirements of automotive and industrial applications. However, it is recommended to follow proper design and manufacturing practices, such as using a robust PCB design, selecting high-reliability components, and implementing adequate testing and validation procedures.
