Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2007-11-08
Manufacturer:
Analog Devices Inc
YTEOL:
10
Delay-Max:
0.5 ns
Input Characteristics:
DIFFERENTIAL
Interface IC Type:
HDMI/DVI TO TMDS TRANSLATOR
JESD-30 Code:
S-XQCC-N48
JESD-609 Code:
e3
Length:
7 mm
Moisture Sensitivity Level:
1
Number of Bits:
4
Number of Functions:
4
Number of Terminals:
48
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Latch or Register:
NONE
Output Polarity:
COMPLEMENTARY
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC32,.2SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Supply Current-Max:
90 mA
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Supply Voltage1-Max:
3.6 V
Supply Voltage1-Min:
3 V
Supply Voltage1-Nom:
3.3 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
MAX9406ETM+T Frequently Asked Questions (FAQs)
A good PCB layout for the MAX9406ETM+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure proper power-up and power-down of the MAX9406ETM+T, make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by VEE. During power-down, remove VEE first, followed by VCC. Also, ensure that the input voltage ramps up and down slowly to prevent damage to the device.
The MAX9406ETM+T has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
To handle ESD protection for the MAX9406ETM+T, use ESD protection devices such as TVS diodes or ESD arrays on the input and output lines. Also, follow proper handling and storage procedures to prevent ESD damage during manufacturing and assembly.
The recommended input and output termination for the MAX9406ETM+T is 50Ω. This ensures maximum signal integrity and minimizes reflections. However, the termination impedance may need to be adjusted based on the specific application and signal frequency.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAX9406ETM+T Overview

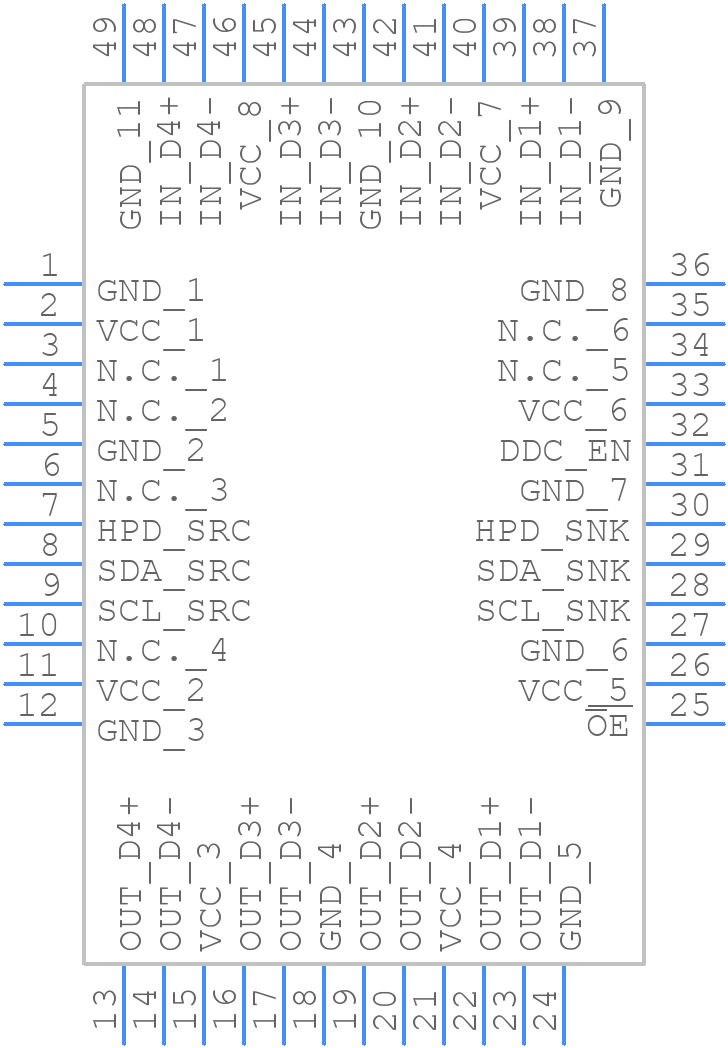

Use the download button to access the MAX9406ETM+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX94,
or try a keyword search, such as Level Translators
