MAX941CSA+ - Analog Devices

Description: MAX941CSA+, Comparator Push-Pull 2.7 → 5.5 V 8-Pin SO

Download MAX941CSA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

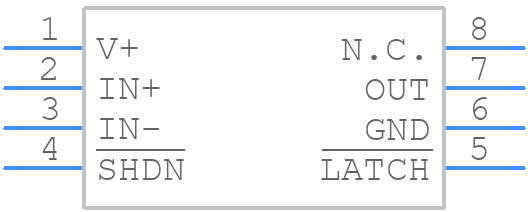

MAX941CSA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX941CSA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO-3
click to zoom
3D Models
MAX941CSA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO-3
click to zoom

MAX941CSA+ Details

  • Manufacturer Part Number:

    MAX941CSA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.3 µA

  • Bias Current-Max (IIB) @25C:

    0.3 µA

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Type:

    TOTEM POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    80 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX941CSA+ Frequently Asked Questions (FAQs)

  • It's essential to follow a good layout practice, keeping the device away from high-current paths and noise sources. Place the device close to the power supply, and use a solid ground plane to reduce noise. Additionally, use a low-ESR capacitor for the bypass capacitor (C1) and place it as close as possible to the device.
  • The recommended value for C1 is 0.1 μF to 1 μF. A smaller value may not provide sufficient filtering, while a larger value can increase the startup time. Using a wrong value can lead to instability, oscillations, or even damage to the device.
  • The maximum allowed voltage on the input pins is 6 V. To protect the device from overvoltage, use a voltage clamp or a transient voltage suppressor (TVS) diode, and ensure that the input voltage does not exceed the recommended maximum rating.
  • To ensure proper power-down, connect the enable pin (EN) to a logic low signal or ground when the device is not in use. Failing to do so can result in increased power consumption, heat generation, and reduced device lifespan.
  • The recommended operating temperature range is -40°C to +125°C. Temperature affects the device's performance, with increased temperature leading to reduced output voltage accuracy, increased quiescent current, and decreased stability.
