MAX941ESA+T - Analog Devices

Description: Analog Comparators High-Speed, Low-Power, 3V/5V, Rail-to-Rail, Single-Supply Comparators

Download MAX941ESA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

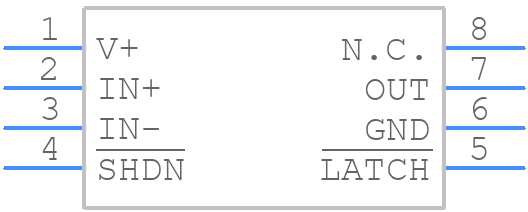

Symbol
MAX941ESA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX941ESA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+2
click to zoom
3D Models
MAX941ESA+T - Analog Devices - 3D model - Small Outline Packages - S8+2
click to zoom

MAX941ESA+T Details

  • Manufacturer Part Number:

    MAX941ESA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.4 µA

  • Bias Current-Max (IIB) @25C:

    0.4 µA

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    80 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX941ESA+T Frequently Asked Questions (FAQs)

  • It's essential to follow a good layout practice, keeping the device away from high-current paths and noise sources. Place the device close to the power source, and use a solid ground plane to reduce noise. Additionally, use a low-ESR capacitor for the VCC bypass and keep the input and output traces short and symmetrical.
  • The MAX941ESA+T requires a proper bias voltage (VCC) between 2.7V and 5.5V. Ensure the bias voltage is stable and within the recommended range. Also, make sure the input common-mode voltage is within the specified range (0.5V to VCC - 0.5V) to maintain optimal performance.
  • The MAX941ESA+T can handle input voltages up to 6V without damage, but it's recommended to keep the input voltage within the specified range (0V to VCC) to ensure optimal performance and prevent damage.
  • To troubleshoot issues, start by verifying the power supply voltage, input voltage, and output load. Check for proper biasing, correct pin connections, and ensure the device is not overheating. Use an oscilloscope to monitor the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The MAX941ESA+T is rated for operation up to 125°C, but its performance may degrade at higher temperatures. Ensure the device is properly heat-sinked, and consider derating the output current and voltage to prevent overheating. Consult the datasheet and reliability reports for more information on high-temperature operation.
