- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAX942CSA+
- Part Number MAX942CSA+
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 21-0041
- Released Date Feb 23, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX942CSA+ Details
-
Manufacturer Part Number:
MAX942CSA+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
8-SOIC_N-150_MIL
-
Package Description:
ROHS COMPLIANT, SOP-8
-
Pin Count:
8
-
Manufacturer Package Code:
8-SOIC_N-150_MIL
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
1999-05-25
MAX942CSA+ Frequently Asked Questions (FAQs)
-
The MAX942CSA+ requires careful layout and placement to ensure optimal performance. It is recommended to place the device close to the signal source, use a ground plane, and keep the input traces short and shielded. Additionally, the device should be placed away from high-frequency noise sources and heat sources.
-
To optimize power supply decoupling, use a combination of ceramic and electrolytic capacitors with different values (e.g., 10nF, 100nF, and 1uF) placed close to the device's power pins. This will help to filter out high-frequency noise and ensure stable operation.
-
The MAX942CSA+ is rated for operation from -40°C to +125°C. However, it's essential to consider the device's thermal characteristics and ensure proper heat dissipation to prevent overheating, especially in high-temperature applications.
-
To troubleshoot common issues, start by checking the device's power supply, input signals, and output loads. Ensure that the device is properly decoupled, and the input signals are within the specified range. Also, verify that the output loads are within the recommended range, and the device is not overheating. If issues persist, consult the datasheet and application notes for guidance.
-
The MAX942CSA+ is a high-reliability device, but it's essential to follow proper design and testing procedures to ensure its suitability for safety-critical applications. Consult the datasheet and relevant industry standards (e.g., IEC 61508 or ISO 26262) for guidance on designing and testing safety-critical systems.
Trust Checks
Community Provided
System Verified
Community Approved
MAX942CSA+ Overview

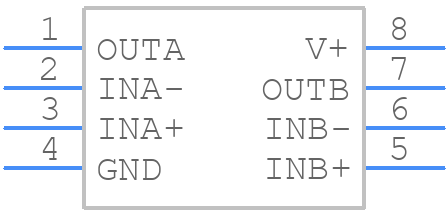

Use the download button to access the MAX942CSA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX94,
or try a keyword search, such as Comparators
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
