MAX942ESA+ - Analog Devices

Description: MAX942ESA+, Dual Comparator Push-Pull 2.7 → 5.5 V 8-Pin SO

Download MAX942ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

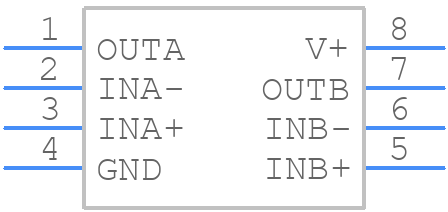

MAX942ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX942ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOIC-ren1
click to zoom
3D Models
MAX942ESA+ - Analog Devices - 3D model - Small Outline Packages - 8-SOIC-ren1
click to zoom

MAX942ESA+ Details

  • Manufacturer Part Number:

    MAX942ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.4 µA

  • Bias Current-Max (IIB) @25C:

    0.4 µA

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    80 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX942ESA+ Frequently Asked Questions (FAQs)

  • The MAX942ESA+ requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and EMI.
  • To optimize the MAX942ESA+ for low power consumption, it is recommended to use the lowest possible supply voltage, reduce the operating frequency, and use the shutdown mode when the device is not in use. Additionally, using a low-power mode or dynamic voltage scaling can also help reduce power consumption.
  • The MAX942ESA+ has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
  • Common issues with the MAX942ESA+ include noise and distortion, which can be caused by poor layout, inadequate power supply decoupling, or incorrect input/output impedance matching. To troubleshoot these issues, it is recommended to use oscilloscopes and signal analyzers to measure the input and output signals, and to check the power supply and layout for any issues.
  • Yes, the MAX942ESA+ is designed to be compatible with other Analog Devices Inc products, including amplifiers, data converters, and interface ICs. It can be used in a wide range of applications, including audio, industrial, and automotive systems.
