MAX942EUA+ - Analog Devices

Description: MAX942EUA+, Comparator 2-kanalers 3, 5V 8-Pin µMAX

Download MAX942EUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

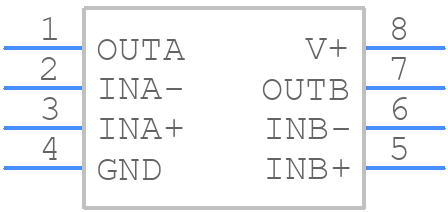

Symbol
MAX942EUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX942EUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - umax-8
click to zoom
3D Models
MAX942EUA+ - Analog Devices - 3D model - Small Outline Packages - umax-8
click to zoom

MAX942EUA+ Details

  • Manufacturer Part Number:

    MAX942EUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    MICRO MAX PACKAGE-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.4 µA

  • Bias Current-Max (IIB) @25C:

    0.4 µA

  • Input Offset Voltage-Max:

    5500 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    TOTEM POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    80 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX942EUA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX942EUA+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is also recommended.
  • To optimize the performance of the MAX942EUA+ in a noisy environment, use a low-pass filter at the input, add a shield around the device, and use a common-mode choke to reduce electromagnetic interference (EMI). Additionally, ensure that the device is properly decoupled and that the power supply is clean.
  • The maximum operating temperature range for the MAX942EUA+ is -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate it within a temperature range of -20°C to +85°C for optimal performance.
  • Yes, the MAX942EUA+ can be used in a high-vibration environment, but it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress. Additionally, the device's solder joints should be inspected regularly to prevent fatigue.
  • To troubleshoot common issues with the MAX942EUA+, start by checking the power supply voltage, ensuring that it's within the recommended range. Then, verify that the input signals are within the specified range and that the device is properly configured. Use an oscilloscope to check the output signals and look for signs of oscillation or instability.
