MAX9618AXA+T - Analog Devices

Description: 1.5MHz Op Amps with RRIO

Download MAX9618AXA+T Model

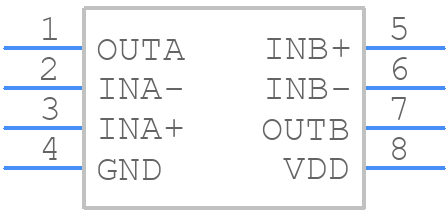

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX9618AXA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - x8cn-1
click to zoom
3D Models
MAX9618AXA+T - Analog Devices  - 3D model - SOT23 (8-Pin) - x8cn-1
click to zoom

MAX9618AXA+T Details

  • Manufacturer Part Number:

    MAX9618AXA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SC70-N/A

  • Package Description:

    ROHS COMPLIANT, MO-203, SC-70, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SC70-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2009-08-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00058 µA

  • Bias Current-Max (IIB) @25C:

    0.00008 µA

  • Common-mode Reject Ratio-Min:

    116 dB

  • Common-mode Reject Ratio-Nom:

    135 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    25 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.09,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    0.7 V/us

  • Supply Current-Max:

    0.222 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1500

  • Voltage Gain-Min:

    1000000

  • Wideband:

    NO

  • Width:

    1.25 mm

MAX9618AXA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9618AXA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input signal is within the recommended common-mode voltage range of 1.5V to 3.5V, and that the output load is within the recommended range of 1kΩ to 10kΩ.
  • The MAX9618AXA+T can handle input signal frequencies up to 100kHz, but the device's bandwidth is limited to 50kHz. Signals above 50kHz may be attenuated or distorted, so it's recommended to use a low-pass filter or a signal conditioner to ensure the input signal is within the recommended frequency range.
  • The output voltage of the MAX9618AXA+T can be calculated using the formula: VOUT = (VIN x R2) / (R1 + R2), where VIN is the input voltage, R1 is the feedback resistor, and R2 is the gain resistor. The output voltage range is typically 0V to 5V, but can be adjusted by selecting the appropriate values for R1 and R2.
  • The typical power consumption of the MAX9618AXA+T is around 1.5mA, but this can vary depending on the input signal frequency, amplitude, and output load. It's recommended to check the datasheet for the specific power consumption characteristics of the device.
