MAX962ESA+ - Analog Devices

Description: MAX962ESA+, Dual Comparator 3 V, 5 V 8-Pin SOIC N

Download MAX962ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

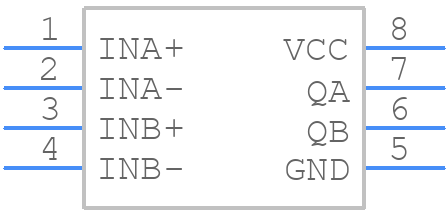

Symbol
MAX962ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX962ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO-3
click to zoom
3D Models
MAX962ESA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO-3
click to zoom

MAX962ESA+ Details

  • Manufacturer Part Number:

    MAX962ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, LEAD FREE, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1996-09-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    15 µA

  • Bias Current-Max (IIB) @25C:

    15 µA

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    TOTEM POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    4.5 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    18 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX962ESA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX962ESA+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The input capacitor (CIN) value depends on the input signal frequency, amplitude, and source impedance. A general rule of thumb is to choose a capacitor value that is at least 10 times the input signal frequency. For example, for a 1MHz input signal, a 10nF capacitor would be a good starting point.
  • The MAX962ESA+ has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • Yes, the MAX962ESA+ is designed to operate in high-vibration environments. However, it's recommended to follow proper PCB mounting and soldering techniques to ensure the device is securely attached to the board. Additionally, it's recommended to use a vibration-resistant capacitor for the input capacitor (CIN).
  • Common issues with the MAX962ESA+ can be troubleshooted by checking the input signal quality, ensuring proper PCB layout and grounding, and verifying the device's operating conditions (e.g., voltage, current, and temperature). Additionally, it's recommended to use a scope or other measurement tools to visualize the input and output signals and identify any anomalies.
