MAX962ESA+T - Analog Devices

Description: Analog Comparators Single/Dual/Quad, Ultra-High-Speed, +3V/+5V, Beyond-the-Rails Comparators

Download MAX962ESA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

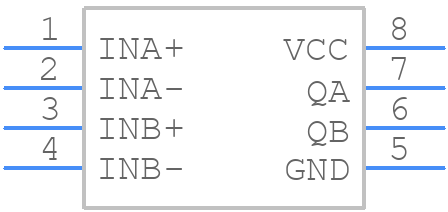

MAX962ESA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX962ESA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8-2_
click to zoom
3D Models
MAX962ESA+T - Analog Devices - 3D model - Small Outline Packages - S8-2_
click to zoom

MAX962ESA+T Details

  • Manufacturer Part Number:

    MAX962ESA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, LEAD FREE, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1996-09-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    15 µA

  • Bias Current-Max (IIB) @25C:

    15 µA

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    TOTEM POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    4.5 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    18 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX962ESA+T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX962ESA+T. Ensure that the input and output traces are separated, and the device is placed close to the input signal source. Use a solid ground plane and decouple the power supply pins with 0.1uF capacitors. Refer to the application note AN-1077 for more detailed layout guidelines.
  • The input termination resistor (RIN) depends on the input signal source impedance and the desired gain. A general rule of thumb is to set RIN to the output impedance of the signal source. For example, if the signal source has a 50Ω output impedance, use a 50Ω RIN. You can also use the MAX962ESA+T's internal 50Ω termination by connecting the RIN pin to GND.
  • The MAX962ESA+T can handle input signal amplitudes up to 5Vpp (peak-to-peak) without damage. However, for optimal performance, it's recommended to keep the input signal amplitude below 2Vpp to avoid clipping and ensure accurate signal amplification.
  • To ensure the MAX962ESA+T operates within its specified bandwidth, make sure the input signal frequency is within the device's -3dB bandwidth (typically 100kHz to 100MHz). Also, ensure that the output load impedance is within the recommended range (typically 100Ω to 1kΩ) to prevent bandwidth reduction.
  • The VREF pin is an internal voltage reference that can be used to set the output common-mode voltage. You can connect VREF to a voltage divider or a fixed voltage source to set the output common-mode voltage. This is useful when you need to level-shift the output signal or match the output voltage to a specific requirement.
