MAX962EUA+ - Analog Devices

Description: MAX962EUA+, Dual Comparator 2-kanalers 3, 5V 8-Pin µMAX

Download MAX962EUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

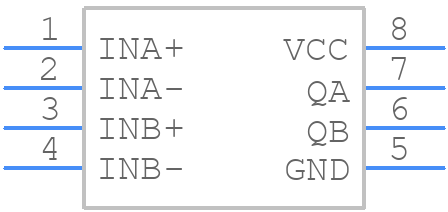

MAX962EUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX962EUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - umax-8
click to zoom
3D Models
MAX962EUA+ - Analog Devices - 3D model - Small Outline Packages - umax-8
click to zoom

MAX962EUA+ Details

  • Manufacturer Part Number:

    MAX962EUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    LEAD FREE, UMAX-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1996-09-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    30 µA

  • Bias Current-Max (IIB) @25C:

    15 µA

  • Input Offset Voltage-Max:

    4500 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    TOTEM POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    4.5 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    18 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX962EUA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX962EUA+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The values of R1 and R2 depend on the desired gain and bandwidth of the amplifier. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements. It's also important to consider the tolerance and temperature coefficient of the resistors to ensure stable operation over the desired temperature range.
  • The maximum input voltage that the MAX962EUA+ can handle is ±5.5V, which is the absolute maximum rating. However, the recommended input voltage range is ±3.5V to ensure optimal performance and linearity. Exceeding the maximum input voltage can result in damage to the device or affect its performance.
  • To ensure proper biasing for single-supply operation, connect the V- pin to a voltage that is at least 1.5V below the V+ pin. This will ensure that the device operates within its recommended operating range. Additionally, make sure to decouple the power supply pins with capacitors to reduce noise and ensure stable operation.
  • The typical settling time of the MAX962EUA+ is around 1.5μs to 2.5μs, depending on the gain and bandwidth settings. However, this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more detailed information on settling time and other performance characteristics.
