MAX969EEE+T - Analog Devices

Description: Analog Comparators Quad Comparator / Reference

Download MAX969EEE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

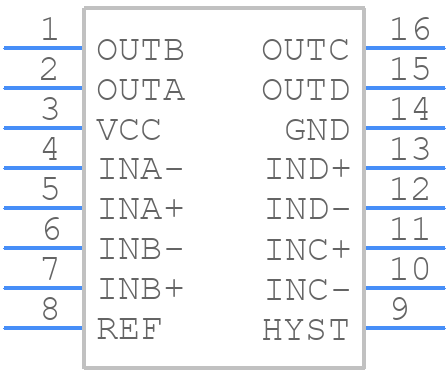

Symbol
MAX969EEE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX969EEE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16+1
click to zoom
3D Models
MAX969EEE+T - Analog Devices - 3D model - Small Outline Packages - E16+1
click to zoom

MAX969EEE+T Details

  • Manufacturer Part Number:

    MAX969EEE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, ROHS COMPLIANT, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1997-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Bias Current-Max (IIB) @25C:

    0.05 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    20000 ns

  • Supply Current-Max:

    0.022 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX969EEE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX969EEE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a shielded cable for the input signal and to keep the input signal path as short as possible.
  • To optimize the performance of the MAX969EEE+T in a high-temperature environment, it's recommended to use a heat sink to dissipate heat, ensure good airflow around the device, and consider using a thermal interface material to improve heat transfer. Additionally, the device's performance may be affected by temperature, so it's essential to characterize its behavior over the expected operating temperature range.
  • The recommended input signal amplitude for the MAX969EEE+T is typically between 100mV to 1V peak-to-peak, and the frequency range is up to 100MHz. However, the specific input signal requirements may vary depending on the application, so it's essential to consult the datasheet and application notes for more information.
  • To troubleshoot common issues with the MAX969EEE+T, it's recommended to check the power supply voltage and ensure it's within the recommended range, verify the input signal amplitude and frequency, and check for any layout or routing issues on the PCB. Additionally, using a scope or other diagnostic tools can help identify the root cause of the issue.
  • When using the MAX969EEE+T in a high-reliability or safety-critical application, it's essential to consider factors such as fault tolerance, redundancy, and fail-safe operation. Additionally, the device's operating conditions, such as temperature and voltage, must be carefully controlled and monitored to ensure reliable operation. It's also recommended to consult with Analog Devices' application engineers and to follow relevant industry standards and guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX969EEE+T Overview

Use the download button to access the MAX969EEE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX96, or try a keyword search, such as Comparators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
