MAX9768BETG+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX9768BETG+. - Audio Power Amplifier, 10 W, D, 1 Channel, 4.5V to 14V, TQFN, 24 Pins

Download MAX9768BETG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

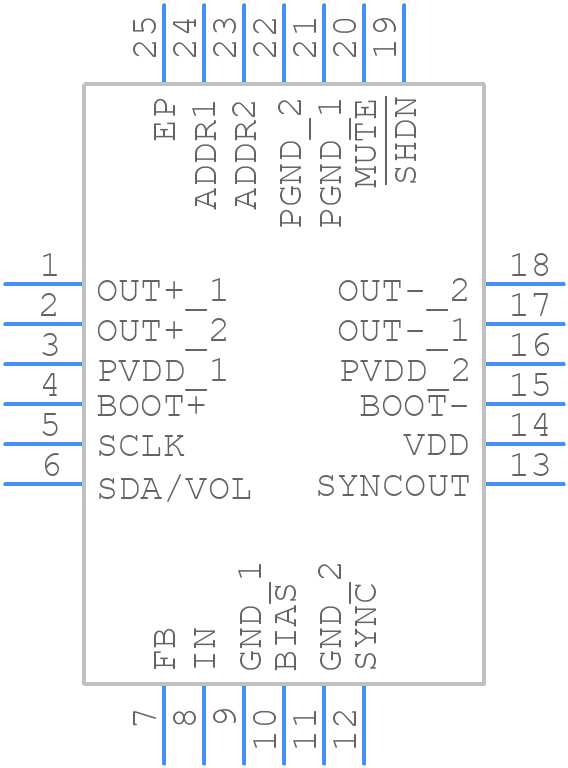

MAX9768BETG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9768BETG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-PIN QFN
click to zoom
3D Models
MAX9768BETG+ - Analog Devices - 3D model - Quad Flat No-Lead - 24-PIN QFN
click to zoom

MAX9768BETG+ Details

  • Manufacturer Part Number:

    MAX9768BETG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-09-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    14.2 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX9768BETG+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX9768BETG+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a common-mode filter and to decouple the power supply pins with capacitors.
  • To optimize the performance of the MAX9768BETG+ in a noisy environment, use a common-mode filter, such as a ferrite bead or a common-mode choke, to filter out high-frequency noise. Additionally, use shielding and grounding techniques to minimize electromagnetic interference (EMI).
  • The maximum operating temperature range for the MAX9768BETG+ is -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, so it's recommended to operate it within a temperature range of -20°C to +85°C for optimal performance.
  • To troubleshoot issues with the MAX9768BETG+, start by checking the power supply voltage and ensuring that it's within the recommended range. Then, check the input and output signals using an oscilloscope to identify any anomalies. Finally, consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
  • Yes, the MAX9768BETG+ is AEC-Q100 qualified, which means it's suitable for use in automotive applications. However, it's recommended to consult the datasheet and application notes for specific guidelines on using the device in an automotive environment.
