MAX9768BETG+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX9768BETG+T - Audio Power Amplifier, Spread Spectrum, 10 W, D, 1 Channel, 4.5V to 14V, TQFN, 24 Pins

Download MAX9768BETG+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

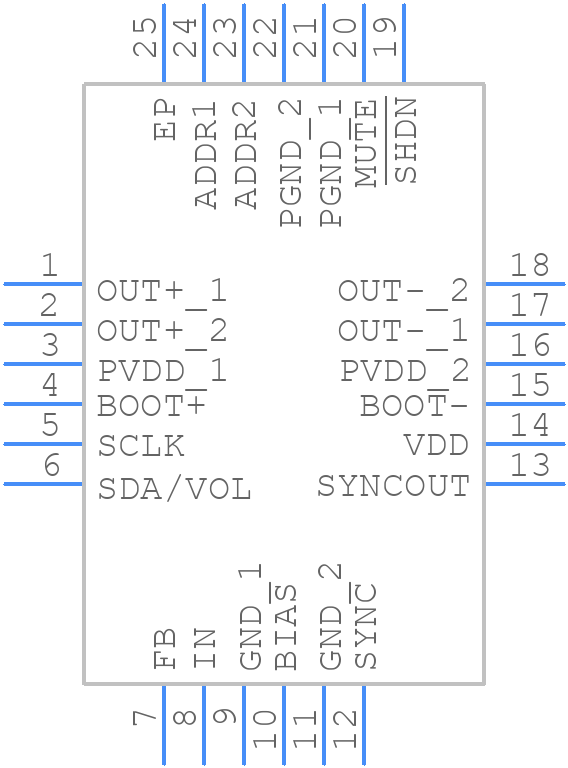

MAX9768BETG+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9768BETG+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444+4-mm
click to zoom
3D Models
MAX9768BETG+T - Analog Devices - 3D model - Quad Flat No-Lead - T2444+4-mm
click to zoom

MAX9768BETG+T Details

  • Manufacturer Part Number:

    MAX9768BETG+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-09-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    14.2 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX9768BETG+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9768BETG+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The input capacitor selection for the MAX9768BETG+T depends on the input voltage, frequency, and desired ripple rejection. A general guideline is to choose a capacitor with a value between 1uF to 10uF, with a voltage rating at least 1.5 times the maximum input voltage. X5R or X7R ceramic capacitors are recommended due to their low ESR and high ripple current capability.
  • The MAX9768BETG+T can deliver up to 2A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's essential to check the device's thermal performance and power dissipation to ensure reliable operation.
  • The MAX9768BETG+T has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to the input voltage through a resistor. The device will limit the output current to a safe level when the OC pin voltage exceeds 0.5V. Additionally, an external current sense resistor can be used to monitor the output current and implement custom overcurrent protection schemes.
  • The recommended input voltage range for the MAX9768BETG+T is 4.5V to 18V, but the device can operate with input voltages as low as 3.5V and as high as 20V. However, the output voltage regulation and efficiency may be affected at these extreme input voltage ranges.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9768BETG+T Overview

Use the download button to access the MAX9768BETG+T schematic symbol, PCB footprint, and 3D model.
