- Part Number MAX98090BETL+T
- Manufacturer Analog Devices
- Pin Count 41
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - T4055+1
- Released Date Oct 5, 2020
- Last Modified Date Oct 8, 2024 5:47 AM UTC

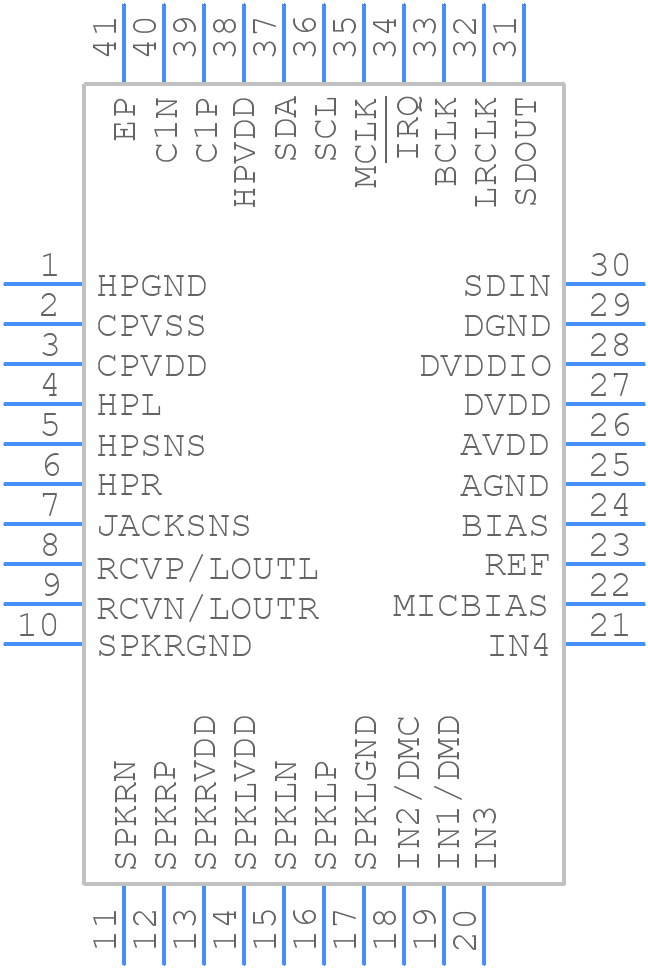

- Pinout / Pin List Click Here (Member Only)
MAX98090BETL+T Details
-
Manufacturer Part Number:
MAX98090BETL+T
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
40-LFCSP-5X5X0.75
-
Pin Count:
40
-
Manufacturer Package Code:
40-LFCSP-5X5X0.75
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
HTS Code:
8542.39.00.01
-
Date Of Intro:
2013-02-19
-
Manufacturer:
Analog Devices Inc
MAX98090BETL+T Frequently Asked Questions (FAQs)
-
A good PCB layout for the MAX98090BETL+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the audio codec. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to follow the layout guidelines provided in the datasheet.
-
The MAX98090BETL+T can be configured using the I2C interface. You'll need to set the appropriate registers to configure the device for your specific audio application, such as setting the gain, filter coefficients, and clock rates. Refer to the datasheet and application notes for more information on register settings and configuration.
-
The maximum power consumption of the MAX98090BETL+T depends on the operating mode and the clock frequency. According to the datasheet, the maximum power consumption is around 120mW when operating at 3.3V and 48kHz sampling rate. However, this can be reduced to around 60mW in low-power mode.
-
Yes, the MAX98090BETL+T can operate with a voltage supply between 2.7V and 3.6V. However, the device's performance and power consumption may vary depending on the supply voltage. It's recommended to consult the datasheet and application notes for more information on operating the device at different voltage levels.
-
To troubleshoot issues with the MAX98090BETL+T, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Next, verify that the device is properly configured and that the I2C interface is functioning correctly. Use an oscilloscope to measure the audio signal and check for any signs of noise or distortion. If the issue persists, consult the datasheet and application notes for more troubleshooting tips or contact Analog Devices' technical support.
