MAX98090BEWJ+T - Analog Devices

Description: 102dB DR Stereo DAC to HP (8kHz < fS < 96kHz) ● 3.6mW Stereo Playback Power Consumption ● 99dB DR Stereo ADC (8kHz < fS < 96kHz) ● 4.2mW Stereo Record Power Consumption ● 3 Stereo Single-Ended/Differential Analog Microphone/Line Inputs (WLP Version) ● Stereo PDM Digital Microphone Input ● Master Clock Frequencies from 256 x fS to 60MHz ● I2S/LJ/RJ/TDM Digital Audio Interface ● FlexSound Technology Signal Processing • Record Path Biquad Filter • Playback Path 7-Band Parametric EQ • Playback Path

Download MAX98090BEWJ+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

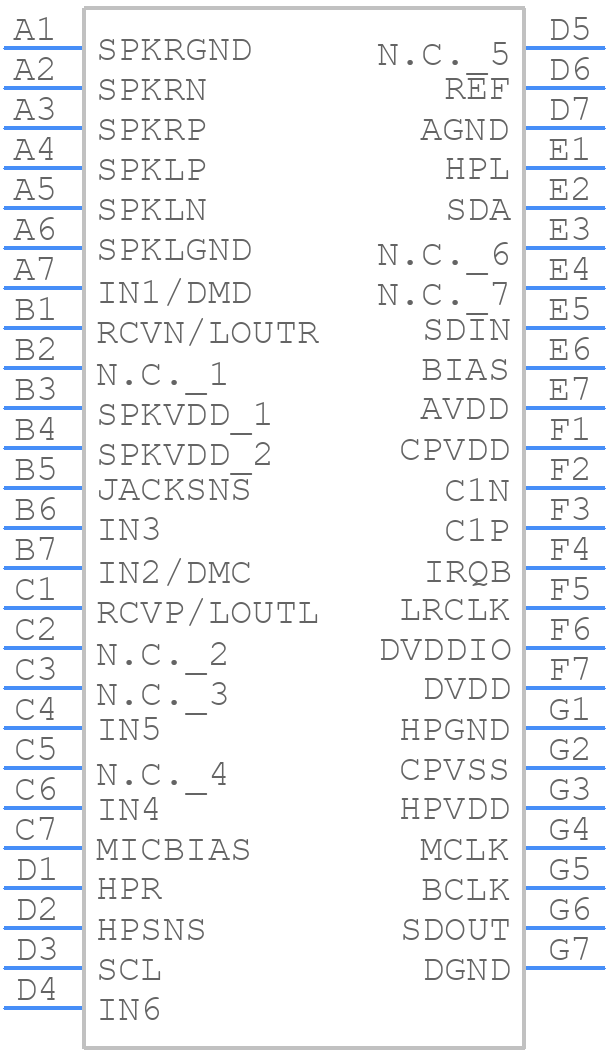

MAX98090BEWJ+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX98090BEWJ+T - Analog Devices PCB footprint - BGA - BGA - W493G3+1-2
click to zoom
3D Models
MAX98090BEWJ+T - Analog Devices - 3D model - BGA - W493G3+1-2
click to zoom

MAX98090BEWJ+T Details

  • Manufacturer Part Number:

    MAX98090BEWJ+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    49-WLCSP-N/A

  • Pin Count:

    49

  • Manufacturer Package Code:

    49-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2013-02-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    PCM CODEC

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX98090BEWJ+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX98090BEWJ+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the audio codec. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to minimize the length of the audio signal traces.
  • The MAX98090BEWJ+T can be configured for use with a specific audio codec by setting the correct register values for the codec's specific requirements. This typically involves setting the clock frequency, data format, and other parameters to match the codec's requirements. Refer to the codec's datasheet and the MAX98090BEWJ+T's datasheet for more information.
  • The maximum power consumption of the MAX98090BEWJ+T depends on the specific operating conditions, but according to the datasheet, the typical power consumption is around 12mA at 1.8V supply voltage. However, this can increase to around 20mA during peak audio signal conditions.
  • To troubleshoot issues with the MAX98090BEWJ+T, start by checking the power supply voltage and ensuring it is within the recommended range. Next, verify that the clock frequency and data format are correctly set. Use an oscilloscope to check the audio signal waveforms and look for any signs of distortion or noise. Also, check the PCB layout and ensure that it is following good design practices.
  • Yes, the MAX98090BEWJ+T is AEC-Q100 qualified, which means it is suitable for use in automotive applications. However, it's essential to ensure that the device is used within its recommended operating conditions and that the system design meets the required automotive standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX98090BEWJ+T Overview

Use the download button to access the MAX98090BEWJ+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX98, or try a keyword search, such as Codecs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
