MAX9919NASA+T - Analog Devices

Description: Current Sense Amplifiers -20V to +75V Input Range, Precision Uni-/Bidirectional, Current-Sense Amplifiers

Download MAX9919NASA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

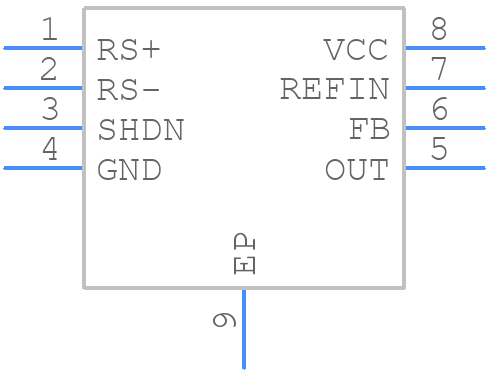

MAX9919NASA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9919NASA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOIC _2024-2
click to zoom
3D Models
MAX9919NASA+T - Analog Devices - 3D model - Small Outline Packages - 8-SOIC _2024-2
click to zoom

MAX9919NASA+T Details

  • Manufacturer Part Number:

    MAX9919NASA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    ROHS COMPLIANT, MS-012, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2009-11-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    250 µA

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1300 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.68 mm

  • Slew Rate-Nom:

    3 V/us

  • Supply Current-Max:

    2.2 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    NO

  • Width:

    3.9 mm

MAX9919NASA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9919NASA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a separate ground plane to minimize noise and electromagnetic interference (EMI).
  • The gain setting for the MAX9919NASA+T depends on the specific application and the desired output signal level. The device offers three gain settings: 20dB, 26dB, and 32dB. To choose the correct gain setting, consider the input signal level, the desired output signal level, and the noise floor of the system. It's recommended to consult the datasheet and application notes for more information on gain setting selection.
  • The MAX9919NASA+T can handle input signal amplitudes up to 2.5Vpp (peak-to-peak) without distortion or clipping. However, it's recommended to limit the input signal amplitude to 1.5Vpp to ensure optimal performance and to prevent damage to the device.
  • The MAX9919NASA+T requires a single 5V power supply (VCC) and can operate from a 4.5V to 5.5V range. It's recommended to use a low-noise, high-PSRR (power supply rejection ratio) power supply to minimize noise and ensure optimal performance. Additionally, it's recommended to decouple the power supply with a 10uF capacitor and a 100nF capacitor in parallel.
  • The typical current consumption of the MAX9919NASA+T is around 12mA to 15mA, depending on the gain setting and the input signal level. However, the current consumption can increase up to 20mA under certain operating conditions, such as high input signal levels or high gain settings.
