MAX9919NASA/V+ - Analog Devices

Description: Current Sense Amplifiers -20V to +75V Input Range, Precision Uni-

Download MAX9919NASA/V+ Model

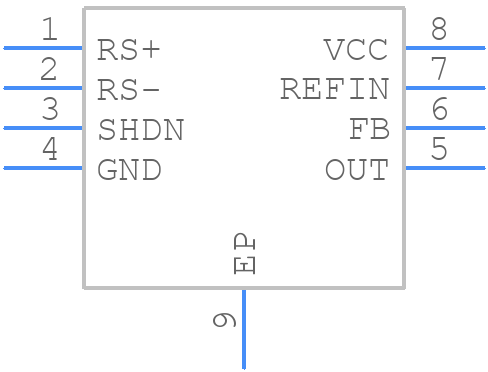

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX9919NASA/V+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8E+14
click to zoom
3D Models
MAX9919NASA/V+ - Analog Devices  - 3D model - Small Outline Packages - S8E+14
click to zoom

MAX9919NASA/V+ Details

  • Manufacturer Part Number:

    MAX9919NASA/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2009-11-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    250 µA

  • Bias Current-Max (IIB) @25C:

    175 µA

  • Common-mode Reject Ratio-Min:

    96 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.68 mm

  • Slew Rate-Nom:

    3 V/us

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    90

  • Wideband:

    NO

  • Width:

    3.9 mm

MAX9919NASA/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9919NASA/V+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The RSET resistor value depends on the desired gain and bandwidth of the amplifier. A smaller RSET value results in higher gain and bandwidth, while a larger value results in lower gain and bandwidth. The datasheet provides a formula to calculate the RSET value based on the desired gain and bandwidth. Typically, a value between 1kΩ and 10kΩ is suitable for most applications.
  • The MAX9919NASA/V+ can handle input voltages up to ±25V, but it's recommended to limit the input voltage to ±20V to ensure reliable operation and prevent damage to the device.
  • The MAX9919NASA/V+ is specified to operate from -40°C to +125°C. To ensure operation within this range, it's essential to provide adequate heat sinking, especially in high-power applications. The device's thermal pad should be connected to a solid ground plane or a heat sink to dissipate heat efficiently.
  • A 10μF ceramic capacitor in parallel with a 1μF ceramic capacitor is recommended for power supply decoupling. These capacitors should be placed close to the device's power pins to minimize noise and ensure stable operation.
