MAX9927AEE/V+ - Analog Devices

Description: Sensor Interface Variable-Reluctance Sensor Interface with Differential Input and Adaptive Peak Threshold

Download MAX9927AEE/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

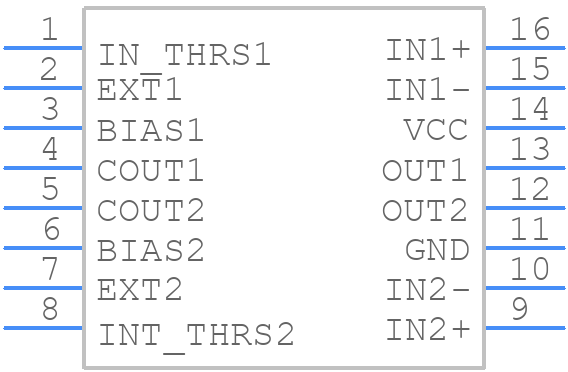

MAX9927AEE/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9927AEE/V+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 QSOP
click to zoom
3D Models
MAX9927AEE/V+ - Analog Devices - 3D model - Small Outline Packages - 16 QSOP
click to zoom

MAX9927AEE/V+ Details

  • Manufacturer Part Number:

    MAX9927AEE/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, 0.025 INCH PITCH, ROHS COMPLIANT, MO-137, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2008-11-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX9927AEE/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9927AEE/V+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • Calibration of the MAX9927AEE/V+ involves setting the device's internal registers to match the specific battery chemistry and capacity. This can be done using the device's built-in calibration mode, which involves charging and discharging the battery while monitoring the device's output. The calibration process typically requires specialized equipment and software.
  • The MAX9927AEE/V+ has an operating temperature range of -40°C to +125°C, but the device's accuracy and performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.
  • Yes, the MAX9927AEE/V+ can be used with multiple battery chemistries, including lithium-ion, nickel-cadmium, and lead-acid. However, the device's internal registers may need to be reconfigured for each battery chemistry, and the calibration process may need to be repeated.
  • The MAX9927AEE/V+ has built-in fault detection and protection features that can detect battery faults such as overcharge or over-discharge. The device can generate an alert or interrupt signal to the system controller in the event of a fault, allowing the system to take corrective action.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9927AEE/V+ Overview

Use the download button to access the MAX9927AEE/V+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX99, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
