MAX9933EUA+ - Analog Devices

Description: MAX9933EUA+, RF Controller 8-Pin µMAX

Download MAX9933EUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

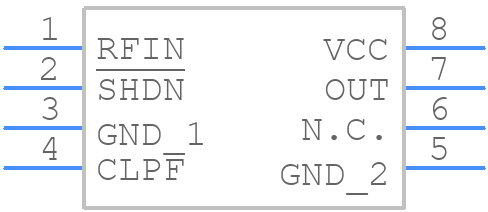

Symbol
MAX9933EUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9933EUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8+1
click to zoom
3D Models
MAX9933EUA+ - Analog Devices - 3D model - Small Outline Packages - U8+1
click to zoom

MAX9933EUA+ Details

  • Manufacturer Part Number:

    MAX9933EUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-08-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • Bandwidth-Nom:

    4.5 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    12 mA

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX9933EUA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9933EUA+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer to minimize noise and interference.
  • The value of the external capacitor (C1) depends on the desired cutoff frequency and the input impedance of the circuit. A general rule of thumb is to choose a capacitor value that sets the cutoff frequency to around 1/10th of the input signal frequency. For example, for a 100kHz input signal, a 10nF capacitor would set the cutoff frequency to around 10kHz.
  • The MAX9933EUA+ can handle input voltages up to 40V, but it's recommended to limit the input voltage to 30V or less to ensure reliable operation and to prevent damage to the device.
  • To ensure that the MAX9933EUA+ is operating in the linear region, the input signal amplitude should be limited to around 2Vp-p or less, and the output voltage should be monitored to ensure it's within the specified range (typically 0.5V to 4.5V). Additionally, the device's output current should be limited to the recommended maximum value (typically 10mA) to prevent saturation.
  • The typical power consumption of the MAX9933EUA+ is around 1.5mA from a 5V supply, but this can vary depending on the input signal frequency, amplitude, and the output load. It's recommended to consult the datasheet and perform power consumption calculations based on the specific application requirements.
