MAX9972ACCS+D - Analog Devices

MAX9972ACCS+D Details

• Manufacturer Part Number:

  MAX9972ACCS+D

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

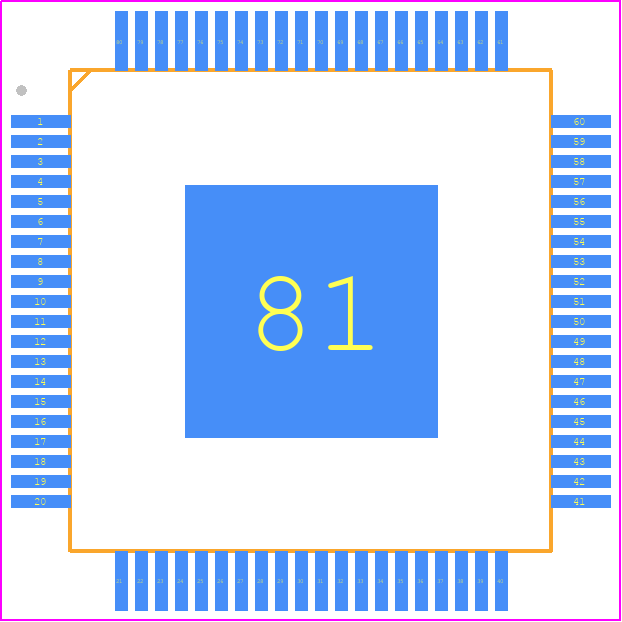

• Part Package Code:

  80-TQFP_EP-12X12X1.0

• Package Description:

  TQFP-80

• Pin Count:

  80

• Manufacturer Package Code:

  80-TQFP_EP-12X12X1.0

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2006-07-18

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Amplifier Type:

  COMPARATOR

• Average Bias Current-Max (IIB):

  100 µA

• Input Offset Voltage-Max:

  10000 µV

• JESD-30 Code:

  S-PQFP-G80

• JESD-609 Code:

  e3

• Length:

  12 mm

• Moisture Sensitivity Level:

  3

• Neg Supply Voltage Limit-Max:

  -6.25 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Functions:

  4

• Number of Terminals:

  80

• Operating Temperature-Max:

  70 °C

• Output Type:

  OPEN-DRAIN

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTFQFP

• Package Equivalence Code:

  TQFP80,.55SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Response Time-Nom:

  2.6 ns

• Seated Height-Max:

  1.2 mm

• Supply Voltage Limit-Max:

  9.4 V

• Supply Voltage-Nom (Vsup):

  8 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  12 mm
