MAX9979KCTK+D - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialized Dual 1.1Gbps Pin Electronics with Integrated PMU and Level-Setting DACs

Download MAX9979KCTK+D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAX9979KCTK+D - Analog Devices - PCB symbol
click to zoom
PCB Footprints

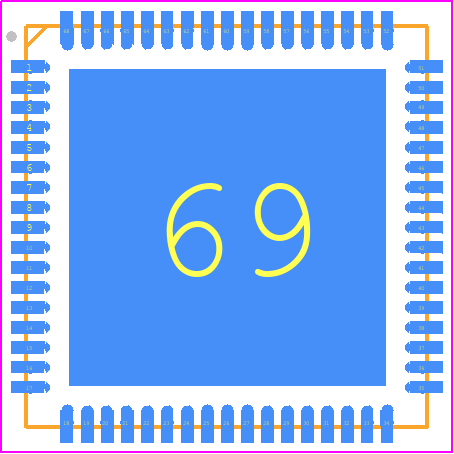

MAX9979KCTK+D - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 68 QFN-EP T6800RN-6
click to zoom
3D Models
MAX9979KCTK+D - Analog Devices - 3D model - Quad Flat No-Lead - 68 QFN-EP T6800RN-6
click to zoom

MAX9979KCTK+D Details

  • Manufacturer Part Number:

    MAX9979KCTK+D

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    68-LFCSP-10X10X0.75

  • Package Description:

    10 X 10 MM, 1 MM HEIGHT, ROHS COMPLIANT, TQFN-68

  • Pin Count:

    68

  • Manufacturer Package Code:

    68-LFCSP-10X10X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2009-05-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N68

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -4.75 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    68

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC68,.4SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    20 µs

  • Supply Voltage-Nom:

    9.75 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

MAX9979KCTK+D Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9979KCTK+D involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input termination resistors for the MAX9979KCTK+D should be chosen based on the impedance of the input signal source and the desired input impedance of the device. A good starting point is to use a 50Ω resistor for a 50Ω input signal source, but the optimal value may need to be adjusted based on the specific application and signal characteristics.
  • The MAX9979KCTK+D has an operating temperature range of -40°C to +125°C, but it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • The MAX9979KCTK+D should be powered from a clean, low-noise power supply, and decoupling capacitors should be placed close to the device's power pins. A 0.1μF ceramic capacitor and a 10μF electrolytic capacitor in parallel are recommended for decoupling, and the power supply should be filtered to reduce noise and ripple.
  • The typical settling time for the MAX9979KCTK+D is around 10ns to 20ns, but this can vary depending on the input signal characteristics, output load, and other factors. It's recommended to consult the datasheet and application notes for more detailed information on settling time and other performance characteristics.
