MAXM17532AMB+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAXM17532AMB+T - DC/DC CONV, POL, SYNC BUCK, USLIC-10

Download MAXM17532AMB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

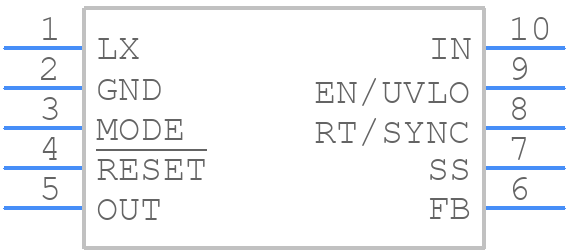

MAXM17532AMB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAXM17532AMB+T - Analog Devices PCB footprint - Other - Other - MAXM17532AMB+T-1
click to zoom
3D Models
MAXM17532AMB+T - Analog Devices - 3D model - Other - MAXM17532AMB+T-1
click to zoom

MAXM17532AMB+T Details

  • Manufacturer Part Number:

    MAXM17532AMB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-CSP_BGA_EM-3X2.6X1.5

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-CSP_BGA_EM-3X2.6X1.5

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-12-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ADJ OUTPUT FROM 0.9V TO 5.5V; ALSO HAS PFM CONTROL TECH

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    SOLCC10,.1,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    1.65 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    973 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2.6 mm

MAXM17532AMB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAXM17532AMB+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output pins properly and to use a low-impedance output capacitor.
  • The MAXM17532AMB+T can handle input voltages up to 42V, but it's recommended to operate within the specified input voltage range of 4.5V to 36V for optimal performance and reliability.
  • The MAXM17532AMB+T is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliability and prevent overheating.
  • To troubleshoot issues with the MAXM17532AMB+T, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and of high quality. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any oscillations or noise on the output.
