MAXM17536ALY# - Analog Devices

Description: Switching Voltage Regulators 4.5V to 60V, 4A High-Efficiency, DC-DC Step-Down Power Module with Integrated Inductor

Download MAXM17536ALY# Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

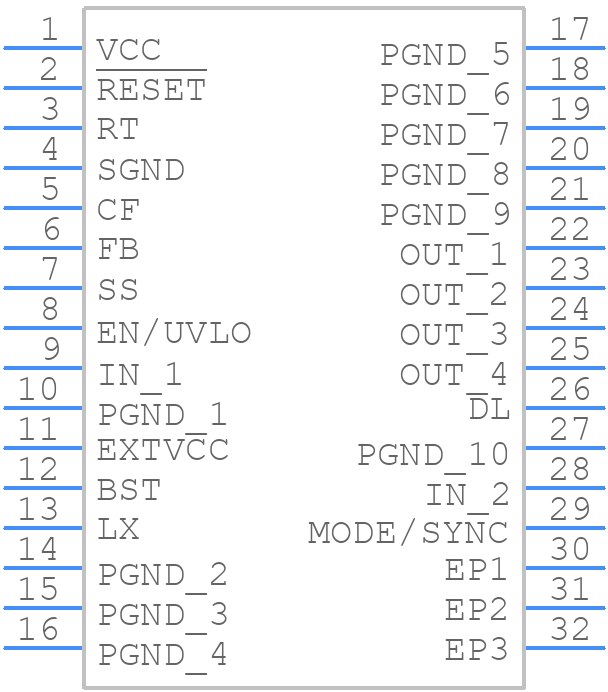

MAXM17536ALY# - Analog Devices - PCB symbol
click to zoom
PCB Footprints

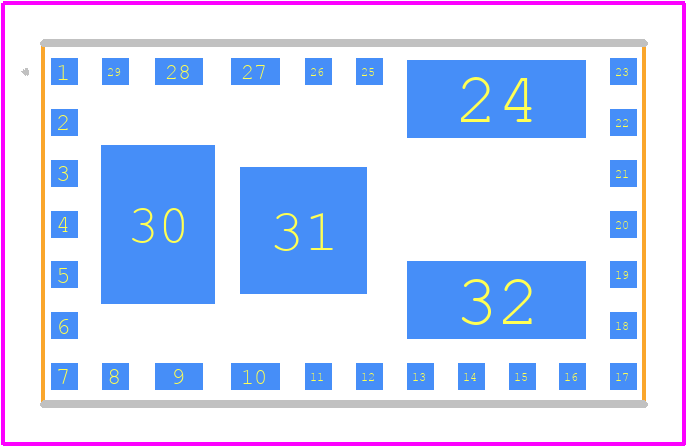

MAXM17536ALY# - Analog Devices PCB footprint - Other - Other - L29915#1
click to zoom
3D Models
MAXM17536ALY# - Analog Devices - 3D model - Other - L29915#1
click to zoom

MAXM17536ALY# Details

  • Manufacturer Part Number:

    MAXM17536ALY#

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    29-LGA-9X15X4.32

  • Package Description:

    PACKAGE-29

  • Pin Count:

    29

  • Manufacturer Package Code:

    29-LGA-9X15X4.32

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-11-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    PULSE FREQUENCY MODULATION TECHNIQUE ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XXMA-N29

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    29

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Voltage-Max:

    12 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Equivalence Code:

    MODULE,29LEAD(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    4.42 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    9 mm

MAXM17536ALY# Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAXM17536ALY# is to use a 4-layer board with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common-mode choke or a ferrite bead to filter out high-frequency noise on the input lines.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also recommended to add a small resistor (e.g. 10Ω) in series with the output capacitor to dampen any oscillations.
  • The maximum input voltage that the MAXM17536ALY# can handle is 42V, but it's recommended to keep the input voltage below 40V to ensure reliable operation and to prevent damage to the device.
  • The MAXM17536ALY# is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. Additionally, make sure to follow the recommended thermal design guidelines to prevent overheating.
  • To troubleshoot issues with the MAXM17536ALY#, start by checking the input and output voltages, and ensure that the device is properly powered and configured. Use an oscilloscope to check for any oscillations or noise on the output, and verify that the input and output capacitors are properly connected. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAXM17536ALY# Overview

Use the download button to access the MAXM17536ALY# schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAXM1, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
