MAXM17543ALJ+ - Analog Devices

Description: Switching Voltage Regulators 60V, 2.5A Integrated Inductor Power Module

Download MAXM17543ALJ+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

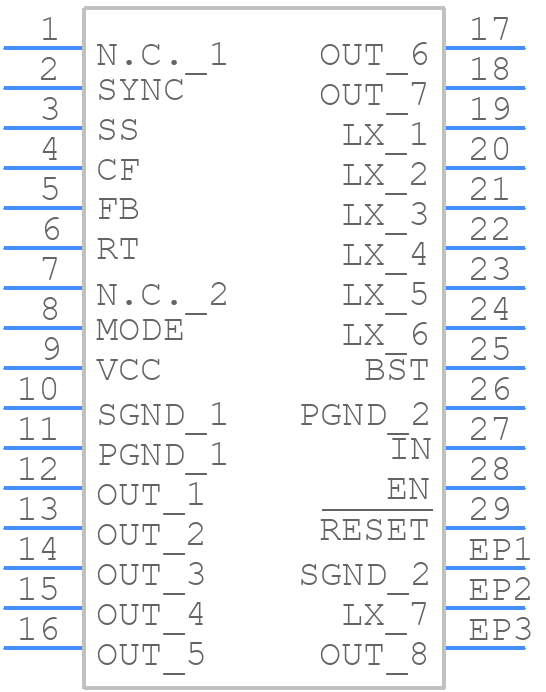

MAXM17543ALJ+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

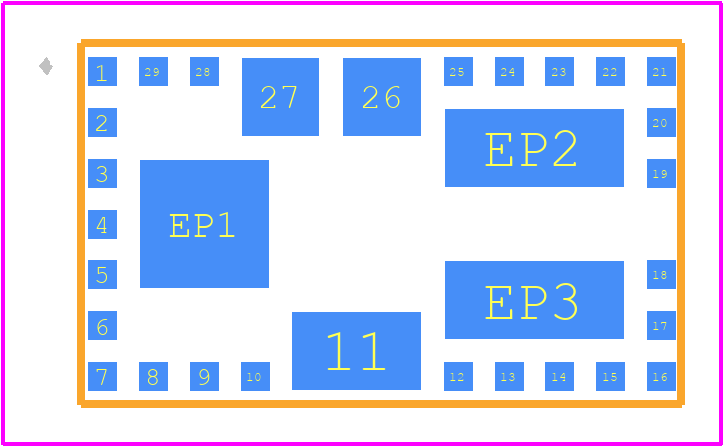

MAXM17543ALJ+ - Analog Devices PCB footprint - Other - Other - MAXM17543ALJ+-3
click to zoom
3D Models
MAXM17543ALJ+ - Analog Devices - 3D model - Other - MAXM17543ALJ+-3
click to zoom

MAXM17543ALJ+ Details

  • Manufacturer Part Number:

    MAXM17543ALJ+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    32-LGA-9X15X2.92

  • Package Description:

    SIP-29

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LGA-9X15X2.92

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2015-01-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XBGA-N29

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    29

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Output Voltage-Max:

    12 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LGA

  • Package Equivalence Code:

    LGA29(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.92 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1800 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BUTTOM

  • Width:

    9 mm

MAXM17543ALJ+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAXM17543ALJ+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate to reduce noise and interference.
  • The selection of input and output capacitors for the MAXM17543ALJ+ depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output voltage ripple and transient response. A good starting point is to use 10uF capacitors for both input and output.
  • The MAXM17543ALJ+ is rated for operation from -40°C to +125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a narrower temperature range if possible.
  • Yes, the MAXM17543ALJ+ is suitable for high-reliability and automotive applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance. However, it's recommended to consult with Analog Devices Inc. for specific requirements and to ensure that the device meets the necessary standards and certifications for the application.
  • Troubleshooting issues with the MAXM17543ALJ+ involves checking the device's input and output voltages, current consumption, and temperature. It's also recommended to check the PCB layout and component selection to ensure that they meet the device's requirements. Additionally, consulting the device's datasheet and application notes, as well as seeking support from Analog Devices Inc., can be helpful in resolving issues.
