MAXM17546ALY#T - Analog Devices

Description: 4.5V to 42V, 5A High-Efficiency, DC-DC Step-Down Power Module with Integrated Inductor

Download MAXM17546ALY#T Model

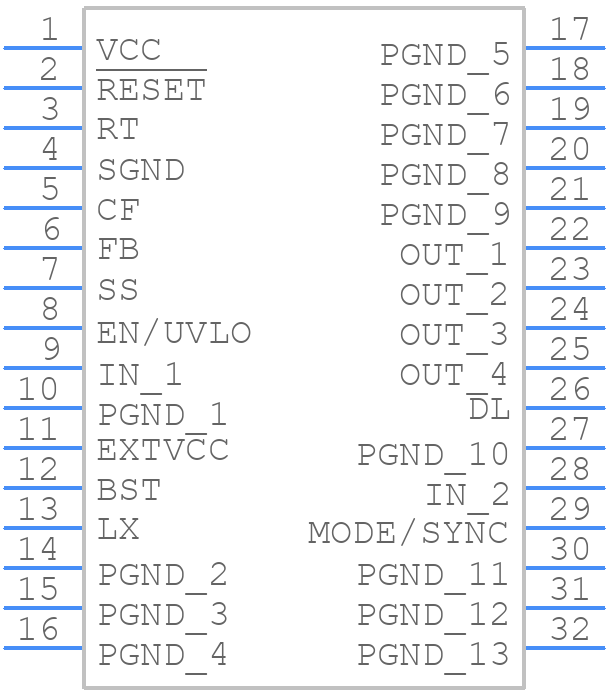

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

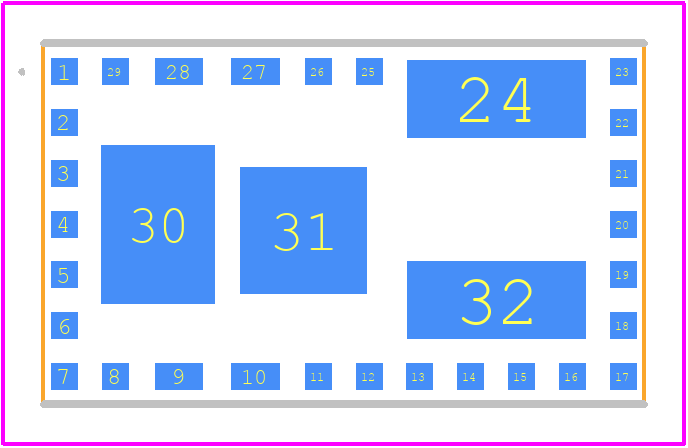

PCB Footprints
MAXM17546ALY#T - Analog Devices PCB footprint - Other - Other - MAXM17546ALY#T-1
click to zoom
3D Models
MAXM17546ALY#T - Analog Devices  - 3D model - Other - MAXM17546ALY#T-1
click to zoom

MAXM17546ALY#T Details

  • Manufacturer Part Number:

    MAXM17546ALY#T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    29-LGA-9X15X4.32

  • Pin Count:

    29

  • Manufacturer Package Code:

    29-LGA-9X15X4.32

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-07-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Moisture Sensitivity Level:

    3

MAXM17546ALY#T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAXM17546ALY#T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate.
  • To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance). Additionally, the output voltage should be decoupled from the input voltage using a capacitor and a resistor in series.
  • The maximum input voltage that the MAXM17546ALY#T can handle is 42V. Exceeding this voltage can cause damage to the device. It's essential to ensure that the input voltage is within the recommended range to ensure reliable operation.
  • The output voltage of the MAXM17546ALY#T can be programmed using the VOUT pin. The output voltage is set by connecting a resistor divider network between the VOUT pin and the GND pin. The ratio of the resistors determines the output voltage. The datasheet provides a formula to calculate the output voltage based on the resistor values.
  • The power dissipation of the MAXM17546ALY#T depends on the input voltage, output voltage, and output current. The maximum power dissipation is 3.5W. It's essential to ensure that the device is operated within the recommended power dissipation range to prevent overheating and damage.
