MAXM17552AMB+T - Analog Devices

Description: Switching Voltage Regulators For MAXM17900: 21V, 100mA High-Efficiency Step-Down Power Module / For MAXM17552: 60V, 100mA High-Efficiency Step-Down Power Module

Download MAXM17552AMB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

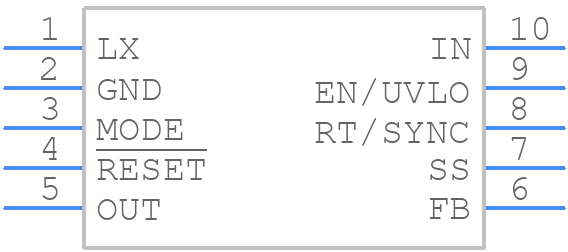

MAXM17552AMB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAXM17552AMB+T - Analog Devices PCB footprint - Other - Other - M102A3+1_2021
click to zoom
3D Models
MAXM17552AMB+T - Analog Devices - 3D model - Other - M102A3+1_2021
click to zoom

MAXM17552AMB+T Details

  • Manufacturer Part Number:

    MAXM17552AMB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-CSP_BGA_EM-3X2.6X1.5

  • Package Description:

    USLIC-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-CSP_BGA_EM-3X2.6X1.5

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-10-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.9 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    SOLCC10,.1,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    1.65 mm

  • Supply Current-Max (Isup):

    1.95 mA

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    973 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2.6 mm

MAXM17552AMB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAXM17552AMB+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output pins with ceramic capacitors to prevent oscillation.
  • The MAXM17552AMB+T is rated for operation from -40°C to +125°C ambient temperature range. However, it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal shutdown.
  • Yes, the MAXM17552AMB+T is suitable for high-reliability and automotive applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance. However, it's recommended to consult with Analog Devices Inc for specific requirements and certifications.
  • To troubleshoot issues with the MAXM17552AMB+T, start by checking the input voltage, output voltage, and current draw. Verify that the component values and PCB layout meet the recommended specifications. Use an oscilloscope to check for noise and oscillations. If the issue persists, consult the datasheet and application notes or contact Analog Devices Inc's technical support.
