MAXM17572AMC+T - Analog Devices

Description: ADI 4.5V to 60V, 1.2 A High Efficiency Step-Down Power Module with Integrated Inductor

Download MAXM17572AMC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

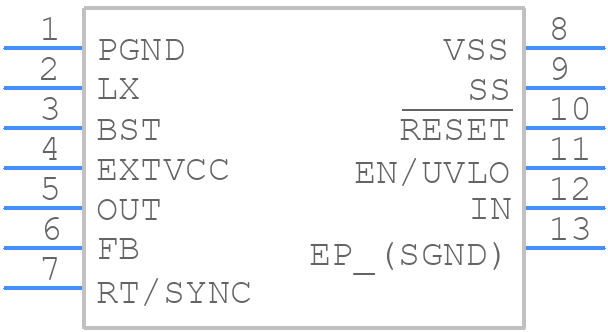

MAXM17572AMC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAXM17572AMC+T - Analog Devices PCB footprint - Other - Other - M123A3+2
click to zoom
3D Models
MAXM17572AMC+T - Analog Devices - 3D model - Other - M123A3+2
click to zoom

MAXM17572AMC+T Details

  • Manufacturer Part Number:

    MAXM17572AMC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-CSP_BGA_EM-3.5X3.5X2.3

  • Package Description:

    USLIC-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-CSP_BGA_EM-3.5X3.5X2.3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2023-03-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-N12

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    12 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOLCC12,.1,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    2.75 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2450 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3.5 mm

MAXM17572AMC+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAXM17572AMC+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output pins with ceramic capacitors to prevent oscillation.
  • The MAXM17572AMC+T has an operating temperature range of -40°C to +125°C, but it's recommended to derate the device's performance at high temperatures. Consult the datasheet for specific derating guidelines.
  • Yes, the MAXM17572AMC+T is a radiation-hardened device that meets the requirements for high-reliability and aerospace applications. However, it's essential to consult with Analog Devices Inc. for specific radiation testing and qualification data.
