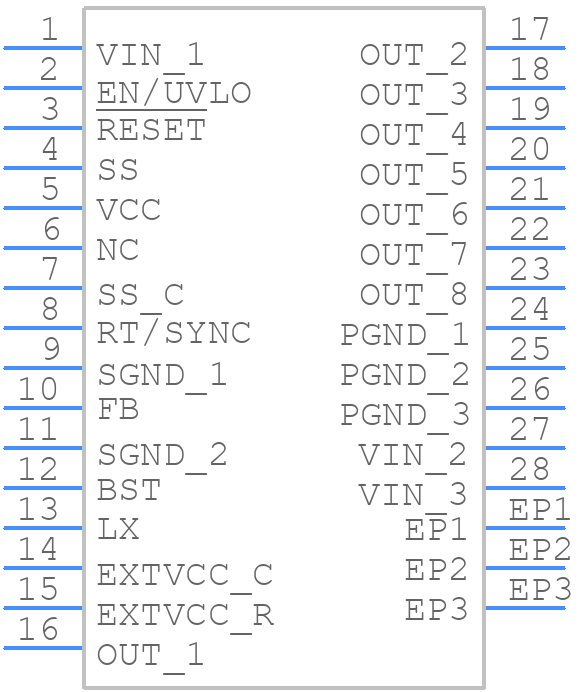

MAXM17575ALI# - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAXM17575ALI# - Analog Devices PCB footprint - Other - Other - MAXM17575ALI#
click to zoom
3D Models
MAXM17575ALI# - Analog Devices - 3D model - Other - MAXM17575ALI#
click to zoom

MAXM17575ALI# Details

  • Manufacturer Part Number:

    MAXM17575ALI#

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    28-LGA-10X6.5X2.92

  • Package Description:

    SIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LGA-10X6.5X2.92

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-12-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XBGA-N28

  • Length:

    10 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    12 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.92 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2450 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.5 mm

MAXM17575ALI# Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAXM17575ALI# is to keep the input and output capacitors close to the device, and to use a solid ground plane to reduce noise and EMI. Additionally, it's recommended to use a separate power plane for the input and output voltages to minimize noise coupling.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also recommended to add a small resistor (e.g. 10Ω) in series with the output capacitor to dampen any potential oscillations.
  • The maximum input voltage that can be applied to the MAXM17575ALI# is 32V, but it's recommended to operate the device within the specified input voltage range of 4.5V to 28V to ensure reliable operation and to prevent damage to the device.
  • The MAXM17575ALI# is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to prevent overheating and ensure reliable operation. Consult the datasheet for specific derating guidelines.
  • To troubleshoot issues with the MAXM17575ALI#, start by checking the input and output voltages, and ensure that the device is properly powered and configured. Check for any signs of overheating, and verify that the PCB layout and component values meet the recommended guidelines. If the issue persists, consult the datasheet and application notes for further guidance.
