MAXM17623AMB+T - Analog Devices

Description: 2.9V to 5.5V, 1A Himalaya uSLIC Step-Down Power Modules

Download MAXM17623AMB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

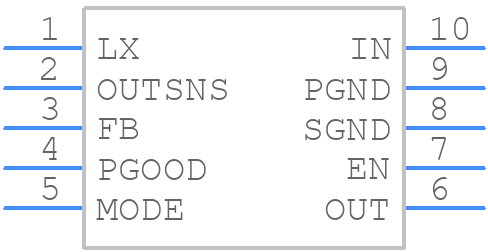

MAXM17623AMB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAXM17623AMB+T - Analog Devices PCB footprint - Other - Other - MA102A2+1
click to zoom
3D Models
MAXM17623AMB+T - Analog Devices - 3D model - Other - MA102A2+1
click to zoom

MAXM17623AMB+T Details

  • Manufacturer Part Number:

    MAXM17623AMB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-CSP_BGA_EM-2.6X2.1X1.3

  • Package Description:

    MICROSLIC-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-CSP_BGA_EM-2.6X2.1X1.3

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-04-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO HAS PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.9 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-XDMA-N10

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.45 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4160 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.1 mm

MAXM17623AMB+T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAXM17623AMB+T. Ensure that the input and output capacitors are placed close to the IC, and the high-current paths are kept short and wide. Also, separate the analog and digital grounds to minimize noise coupling.
  • Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR and high capacitance. The datasheet recommends 10uF to 22uF for input and output capacitors, but the optimal value depends on the specific application.
  • The MAXM17623AMB+T is rated for operation up to 125°C ambient temperature. However, it's essential to consider the junction temperature (Tj) which should not exceed 150°C. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • Start by verifying the PCB layout and component selection. Check for proper input and output capacitor selection, and ensure that the input voltage is within the recommended range. Use an oscilloscope to monitor the output voltage and current, and look for signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the MAXM17623AMB+T is suitable for high-reliability and automotive applications. It meets the AEC-Q100 qualification standard for automotive applications and is designed to meet the requirements of high-reliability systems. However, ensure that you follow proper design and testing procedures to guarantee the required level of reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAXM17623AMB+T Overview

Use the download button to access the MAXM17623AMB+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAXM1, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
