MAXM17624AMB+ - Analog Devices

Description: Switching Voltage Regulators 2.9V-to-5V Input, 1A , 1.5V-to-3.3V output DC-DC Converter Module

Download MAXM17624AMB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

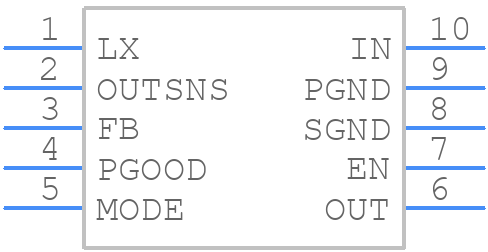

MAXM17624AMB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAXM17624AMB+ - Analog Devices PCB footprint - Other - Other - 90-100084 eMGA
click to zoom
3D Models
MAXM17624AMB+ - Analog Devices - 3D model - Other - 90-100084 eMGA
click to zoom

MAXM17624AMB+ Details

  • Manufacturer Part Number:

    MAXM17624AMB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-CSP_BGA_EM-2.6X2.1X1.3

  • Package Description:

    MICROSLIC-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-CSP_BGA_EM-2.6X2.1X1.3

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-04-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO HAS PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.9 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-XDMA-N10

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4160 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.1 mm

MAXM17624AMB+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAXM17624AMB+ can be found in the MAXM17624AMB+ Evaluation Kit documentation, which includes a layout guide and Gerber files. Additionally, Analog Devices provides a PCB layout checklist in the device's datasheet.
  • To optimize the performance of the MAXM17624AMB+, consider the following: ensure proper PCB layout and thermal management, select the appropriate input and output capacitors, and adjust the device's configuration registers according to the application's requirements. Analog Devices also provides application notes and design guides to help with optimization.
  • The MAXM17624AMB+ is rated for operation from -40°C to +125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures. Consult the datasheet and application notes for more information on temperature-related considerations.
  • The MAXM17624AMB+ is a surface-mount device and can be susceptible to vibration-induced failures. To ensure reliability in high-vibration environments, consider using a vibration-resistant mounting method, such as a screw-down or adhesive-based attachment, and follow proper PCB design and assembly practices.
  • To troubleshoot issues with the MAXM17624AMB+, start by consulting the datasheet and application notes. Check the device's configuration registers, input and output voltages, and PCB layout for any errors or inconsistencies. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Analog Devices also provides technical support and resources to help with troubleshooting.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAXM17624AMB+ Overview

Use the download button to access the MAXM17624AMB+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAXM1, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
