MAXM17631AME+T - Analog Devices

Description: 4.5V to 36V, 1A Himalaya uSLIC Step-Down Power Module

Download MAXM17631AME+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

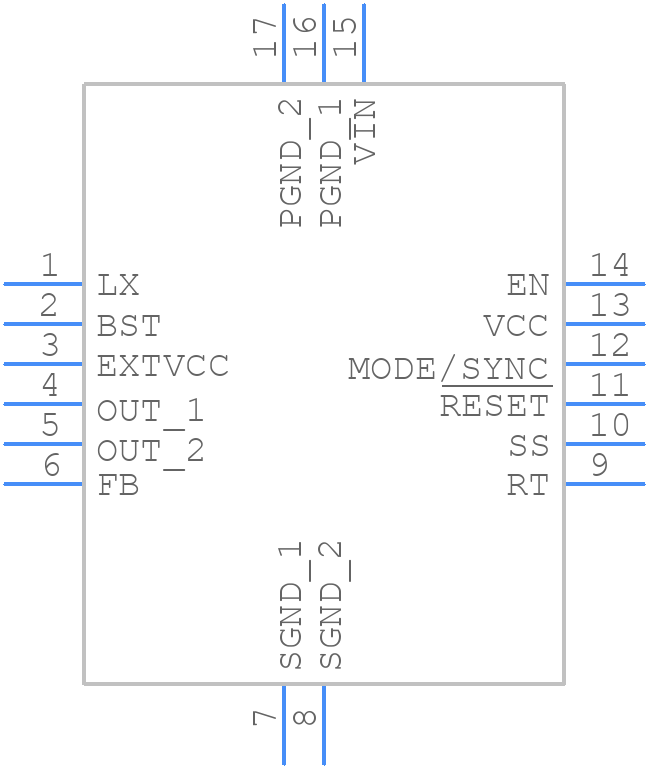

MAXM17631AME+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAXM17631AME+T - Analog Devices PCB footprint - Other - Other - MAXM17631AME+T-3
click to zoom
3D Models
MAXM17631AME+T - Analog Devices - 3D model - Other - MAXM17631AME+T-3
click to zoom

MAXM17631AME+T Details

  • Manufacturer Part Number:

    MAXM17631AME+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-CSP_BGA_EM-3X3X1.55

  • Package Description:

    MICRO SLIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-CSP_BGA_EM-3X3X1.55

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-02-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    PFM CONTROL ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XQMA-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    5.06 V

  • Output Voltage-Min:

    4.94 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QMA

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2450 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAXM17631AME+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAXM17631AME+T involves keeping the input and output traces separate, using a solid ground plane, and placing the input capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input capacitors for the MAXM17631AME+T should be selected based on the input voltage range, ripple current, and ESR. A good starting point is to use 10uF to 22uF ceramic capacitors with an X7R or X5R dielectric and a voltage rating of at least 2x the maximum input voltage.
  • The MAXM17631AME+T has an operating ambient temperature range of -40°C to +125°C, but the maximum ambient temperature range for reliable operation is typically limited to -20°C to +85°C. Above 85°C, the device's performance and reliability may degrade.
  • Yes, the MAXM17631AME+T is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Additionally, the PCB should be designed to withstand the vibration and shock requirements of the application.
  • To troubleshoot issues with the MAXM17631AME+T, start by checking the input voltage, output voltage, and current. Verify that the input capacitors are properly selected and installed. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and current waveforms, and consult the datasheet and application notes for guidance on troubleshooting and debugging.
