MAXM17633AMG+T - Analog Devices

Description: 4.5V to 36V, 2A Himalaya uSLIC Step-Down Power Modules, -40°C to +125°C

Download MAXM17633AMG+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

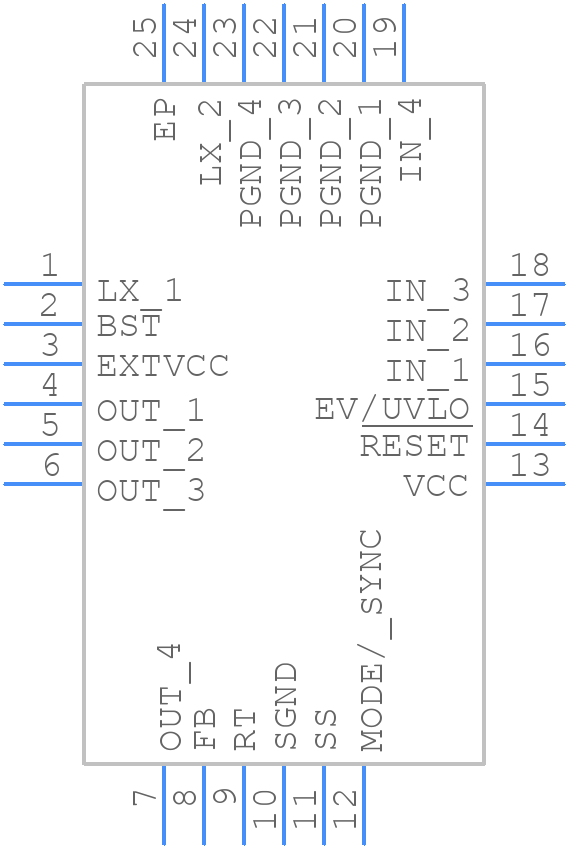

MAXM17633AMG+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAXM17633AMG+T - Analog Devices PCB footprint - Other - Other - M244A4+1_2026-1
click to zoom
3D Models
MAXM17633AMG+T - Analog Devices - 3D model - Other - M244A4+1_2026-1
click to zoom

MAXM17633AMG+T Details

  • Manufacturer Part Number:

    MAXM17633AMG+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-CSP_BGA_EM-4X4X1.55

  • Package Description:

    USLIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-CSP_BGA_EM-4X4X1.55

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-02-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    PULSE FREQUENCY MODULATION TECHNIQUE ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XQMA-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QMA

  • Package Equivalence Code:

    MODULE,24LEAD,.15

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2450 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAXM17633AMG+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAXM17633AMG+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input capacitors for the MAXM17633AMG+T should be selected based on the input voltage range, ripple current, and ESR. A good starting point is to use ceramic capacitors with a value of 10uF to 22uF and a voltage rating of 25V to 50V. The capacitors should also have a low ESR (Equivalent Series Resistance) to minimize voltage ripple.
  • The MAXM17633AMG+T has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. As a general rule, the ambient temperature should be kept below 85°C to ensure reliable operation.
  • To troubleshoot issues with the MAXM17633AMG+T, start by checking the input voltage, output voltage, and current. Verify that the input capacitors are properly selected and installed, and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to check for voltage ripple or oscillations, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The MAXM17633AMG+T is a high-reliability device, but it's essential to follow proper design and manufacturing practices to ensure the device meets the requirements of the specific application. This includes following the recommended PCB layout, using proper thermal management, and implementing adequate fault detection and protection mechanisms. Additionally, consult with Analog Devices Inc. or a qualified reliability engineer to ensure the device meets the specific requirements of the application.
