MAXM17634AMG+T footprint, schematic symbol and 3D model by Analog Devices

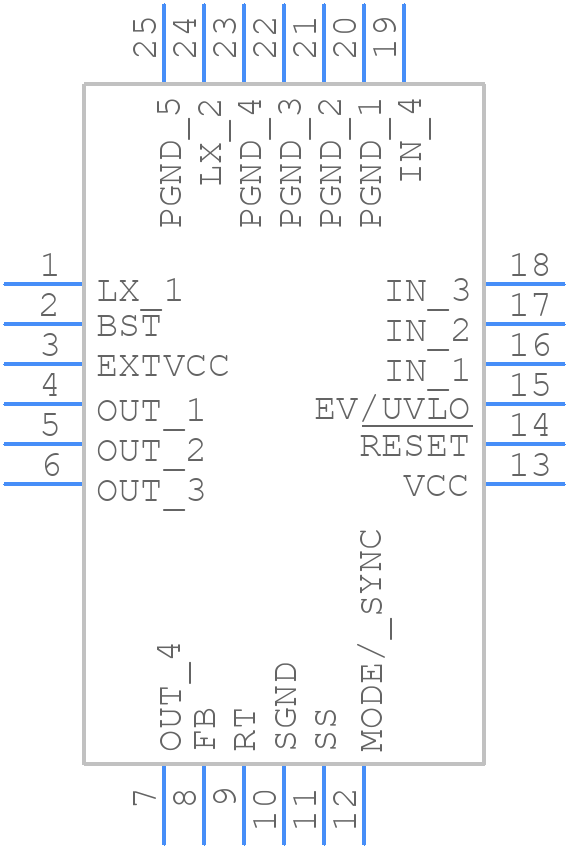

Symbol

click to zoom

PCB Footprints

MAXM17634AMG+T - Analog Devices PCB footprint - Other - Other - M244A4+1_2026-2.2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAXM17634AMG+T
Part Number MAXM17634AMG+T
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - M244A4+1_2026-2.2
Released Date Sep 11, 2023
Last Modified Date Jul 2, 2026 9:14 AM UTC
Pinout / Pin List Click Here (Member Only)

MAXM17634AMG+T Details

Manufacturer Part Number:
MAXM17634AMG+T
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
24-CSP_BGA_EM-4X4X1.55
Package Description:
USLIC-24
Pin Count:
24
Manufacturer Package Code:
24-CSP_BGA_EM-4X4X1.55
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2020-02-04
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Additional Feature:
PULSE FREQUENCY MODULATION TECHNIQUE ALSO AVAILABLE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
36 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
24 V
JESD-30 Code:
S-XQMA-N24
Length:
4 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
24
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2 A
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
QMA
Package Equivalence Code:
MODULE,24LEAD,.15
Package Shape:
SQUARE
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.8 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2450 kHz
Technology:
HYBRID
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
4 mm

MAXM17634AMG+T Frequently Asked Questions (FAQs)

A good PCB layout for the MAXM17634AMG+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The selection of input and output capacitors for the MAXM17634AMG+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output voltage ripple and transient response. A good starting point is to use 10uF capacitors for both input and output.
The MAXM17634AMG+T is rated for operation from -40°C to +125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to derate the device's performance and ensure proper thermal management to ensure reliable operation.
Yes, the MAXM17634AMG+T is suitable for high-reliability and automotive applications. It's built with high-reliability materials and manufacturing processes, and it's qualified to AEC-Q100 Grade 1 standards. However, it's recommended to consult with Analog Devices Inc. for specific requirements and to ensure that the device meets the specific application requirements.
To troubleshoot common issues with the MAXM17634AMG+T, start by checking the input voltage, output load, and PCB layout. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the PCB layout is correct. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to check the output voltage ripple and transient response. Consult the datasheet and application notes for specific troubleshooting guidelines.
