MAXM17712AMB+T - Analog Devices

Description: Integrated 4V-60V, 150mA, Himalaya uSLIC Power Module DC-DC Converter with 50mA Linear Regulator

Download MAXM17712AMB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

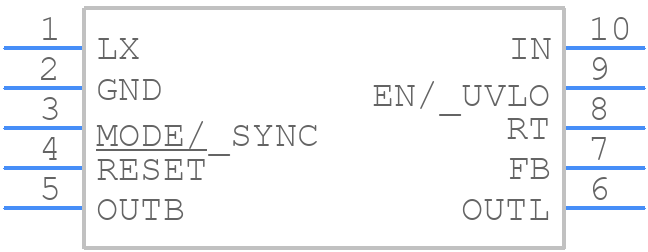

MAXM17712AMB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAXM17712AMB+T - Analog Devices PCB footprint - Other - Other - 10-CSP_BGA_EM-3X2.6X1.5 _2023_2
click to zoom
3D Models
MAXM17712AMB+T - Analog Devices - 3D model - Other - 10-CSP_BGA_EM-3X2.6X1.5 _2023_2
click to zoom

MAXM17712AMB+T Details

  • Manufacturer Part Number:

    MAXM17712AMB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-CSP_BGA_EM-3X2.6X1.5

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-CSP_BGA_EM-3X2.6X1.5

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-02-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    PULSE FREQUENCY MODULATION TECHNIQUE ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDSO-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.65 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.6 mm

MAXM17712AMB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAXM17712AMB+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure stability, it's crucial to follow the recommended component values and layout guidelines. Additionally, the input and output capacitors should be selected based on the specific application requirements. The device's stability can be verified by checking the output voltage ripple and transient response. If oscillations occur, adjusting the compensation components or adding a small series resistor to the output can help stabilize the device.
  • The MAXM17712AMB+T is rated for operation from -40°C to +125°C ambient temperature. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal management and heat dissipation in the system design to ensure reliable operation within the specified temperature range.
  • Yes, the MAXM17712AMB+T is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive systems. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
  • To troubleshoot issues with the MAXM17712AMB+T, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to check the output voltage ripple and transient response. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.
