MAXM17720AMB+T - Analog Devices

Description: Integrated 4V-60V, 100mA, Himalaya uSLIC Power Module DC-DC Converter with 50mA Linear Regulator

Download MAXM17720AMB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

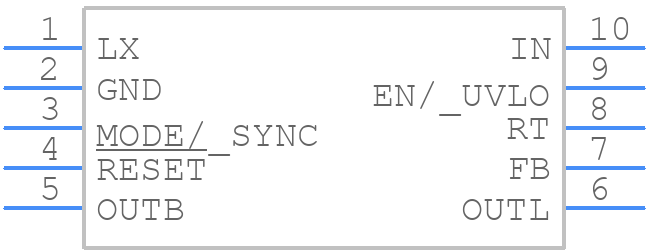

Symbol
MAXM17720AMB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAXM17720AMB+T - Analog Devices PCB footprint - Other - Other - 10-CSP_BGA_EM-3X2.6X1.5_2023_3
click to zoom
3D Models
MAXM17720AMB+T - Analog Devices - 3D model - Other - 10-CSP_BGA_EM-3X2.6X1.5_2023_3
click to zoom

MAXM17720AMB+T Details

  • Manufacturer Part Number:

    MAXM17720AMB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-CSP_BGA_EM-3X2.6X1.5

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-CSP_BGA_EM-3X2.6X1.5

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-02-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    PULSE FREQUENCY MODULATION TECHNIQUE ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDSO-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.65 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.6 mm

MAXM17720AMB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAXM17720AMB+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure stability, it's crucial to follow the recommended component values and layout guidelines. Additionally, the input and output capacitors should be selected based on the specific application requirements. The device's stability can also be affected by the quality of the input voltage and the output load. It's recommended to use a high-quality input voltage source and to ensure that the output load is within the specified range.
  • The MAXM17720AMB+T is rated for operation from -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to ensure that the device is operated within the specified temperature range and that adequate cooling is provided to prevent overheating.
  • Yes, the MAXM17720AMB+T is suitable for high-reliability and high-availability applications. The device is built with high-reliability components and is designed to meet the requirements of demanding applications. However, it's essential to follow the recommended design and layout guidelines, and to ensure that the device is operated within the specified parameters.
  • Troubleshooting issues with the MAXM17720AMB+T involves identifying the symptoms of the problem and then using a systematic approach to isolate the cause. This may involve checking the input voltage, output voltage, and current, as well as verifying that the device is properly configured and that the layout meets the recommended guidelines. It's also essential to consult the datasheet and application notes, and to seek support from Analog Devices Inc or a qualified engineer if necessary.
