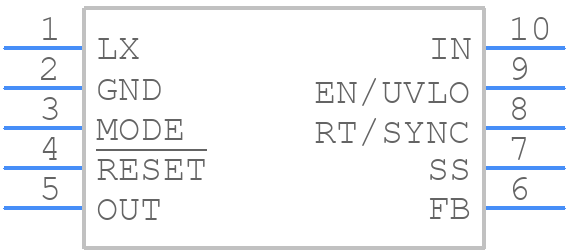

Symbol
MAXM17900AMB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAXM17900AMB+T - Analog Devices PCB footprint - Other - Other - M102A3+1
click to zoom
3D Models
MAXM17900AMB+T - Analog Devices - 3D model - Other - M102A3+1
click to zoom

MAXM17900AMB+T Details

  • Manufacturer Part Number:

    MAXM17900AMB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-CSP_BGA_EM-3X2.6X1.5

  • Package Description:

    USLIC-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-CSP_BGA_EM-3X2.6X1.5

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-10-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XDMA-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.9 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    SOLCC10,.1,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    1.65 mm

  • Supply Current-Max (Isup):

    1.95 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    973 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2.6 mm

MAXM17900AMB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAXM17900AMB+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure stability, it's crucial to follow the compensation guidelines provided in the datasheet. This includes selecting the correct compensation components, such as resistors and capacitors, and placing them close to the device. Additionally, the input and output capacitors should be selected based on the specific application requirements. It's also important to ensure that the device is operated within its recommended operating conditions.
  • The MAXM17900AMB+T has an operating temperature range of -40°C to +125°C. However, the device can be operated at a maximum ambient temperature of +105°C with derating. It's essential to follow the thermal management guidelines provided in the datasheet to ensure reliable operation.
  • Yes, the MAXM17900AMB+T is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive systems. However, it's essential to follow the specific requirements and guidelines for the target application, including any additional testing and validation.
  • To troubleshoot issues with the MAXM17900AMB+T, start by verifying the input voltage, output voltage, and current. Check the device's operating conditions, including the temperature and power supply. Use an oscilloscope to monitor the output voltage and current. Check the PCB layout and ensure that it follows the recommended guidelines. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support.
