MAXM86161EFD+ - Analog Devices

Description: Single-Supply Integrated Optical Module for HR and SpO2 Measurement

Download MAXM86161EFD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

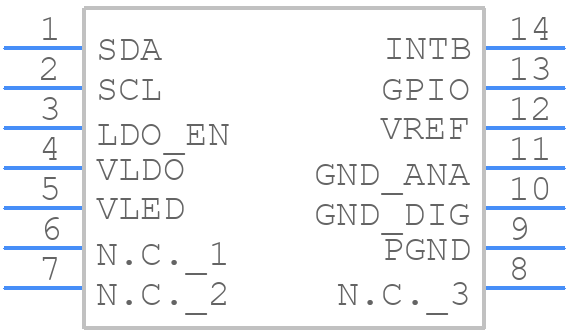

MAXM86161EFD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAXM86161EFD+ - Analog Devices PCB footprint - Other - Other - MAXM86161EFD+-4
click to zoom
3D Models
MAXM86161EFD+ - Analog Devices - 3D model - Other - MAXM86161EFD+-4
click to zoom

MAXM86161EFD+ Details

  • Manufacturer Part Number:

    MAXM86161EFD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    14-LGA_CAV-4.3x2.9x1.4

  • Package Description:

    OLGA-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-LGA_CAV-4.3x2.9x1.4

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-07-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XBCC-N14

  • Length:

    4.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BCC

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.6 mm

  • Terminal Position:

    DUAL

  • Width:

    2.9 mm

MAXM86161EFD+ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAXM86161EFD+. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, it's recommended to place the device close to the battery and use short, direct traces to minimize noise and interference.
  • Calibration of the MAXM86161EFD+ involves adjusting the internal calibration registers to compensate for variations in the device and the external circuitry. The datasheet provides a calibration procedure that involves measuring the output voltage of the device and adjusting the calibration registers accordingly. It's recommended to perform calibration at multiple temperatures and battery voltages to ensure accurate measurements across different operating conditions.
  • The maximum allowed voltage on the VCC pin of the MAXM86161EFD+ is 5.5V. Exceeding this voltage can damage the device. It's recommended to use a voltage regulator or a voltage limiter to ensure that the voltage on the VCC pin does not exceed the maximum allowed voltage.
  • Troubleshooting issues with the MAXM86161EFD+ involves identifying the symptoms of the problem and using a systematic approach to isolate the cause. Common issues include incorrect configuration, noise interference, and power supply issues. The datasheet provides a troubleshooting guide that includes a list of common issues and their solutions. Additionally, it's recommended to use a logic analyzer or an oscilloscope to debug the device and identify the root cause of the problem.
  • Yes, the MAXM86161EFD+ is designed for use in battery-powered devices. It has a low power consumption of 15μA in normal operating mode and 1.5μA in shutdown mode, making it suitable for battery-powered applications. However, it's recommended to follow proper power management techniques, such as using a low-dropout regulator and minimizing power consumption during idle periods, to maximize battery life.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAXM86161EFD+ Overview

Use the download button to access the MAXM86161EFD+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAXM8, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
