MAYA-W260-00B - u-blox

Description: 802.15.4, Bluetooth, WiFi 802.11a/b/g/n/ac/ax Transceiver Module 2.4GHz ~ 5GHz Antenna Not Included, U.FL Surface Mount

Download MAYA-W260-00B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAYA-W260-00B - u-blox - PCB symbol
click to zoom
PCB Footprints

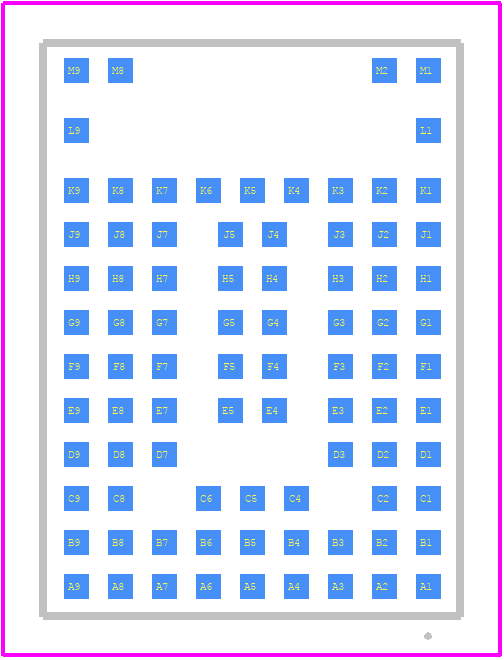

MAYA-W260-00B - u-blox PCB footprint - Other - Other - 86 pins (LGA)_2026-2.2
click to zoom
3D Models
MAYA-W260-00B - u-blox - 3D model - Other - 86 pins (LGA)_2026-2.2
click to zoom

MAYA-W260-00B Details

  • Manufacturer Part Number:

    MAYA-W260-00B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • Moisture Sensitivity Level:

    4

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

MAYA-W260-00B Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply power to the VCC pin, followed by the enable pin (EN). This ensures that the module is properly initialized and configured.
  • The module can be configured using the AT command set, which allows you to set the Wi-Fi network parameters such as SSID, password, and encryption method. You can also use the u-blox WISE-EDGE software development kit (SDK) to configure the module.
  • The maximum transmission power of the MAYA-W260-00B module is +18 dBm, which is adjustable using the AT command set.
  • Yes, the MAYA-W260-00B module supports concurrent Wi-Fi and Bluetooth operation, allowing you to use both wireless technologies simultaneously.
  • The operating temperature range of the MAYA-W260-00B module is -40°C to +85°C, making it suitable for use in a wide range of industrial and commercial applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAYA-W260-00B Overview

Use the download button to access the MAYA-W260-00B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAYA-, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About u-blox

u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
