MAYA-W271-00B - u-blox

Description: 802.15.4, Bluetooth, WiFi 802.11a/b/g/n/ac/ax Transceiver Module 2.4GHz ~ 5GHz Antenna Not Included Surface Mount

Download MAYA-W271-00B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAYA-W271-00B - u-blox - PCB symbol
click to zoom
PCB Footprints

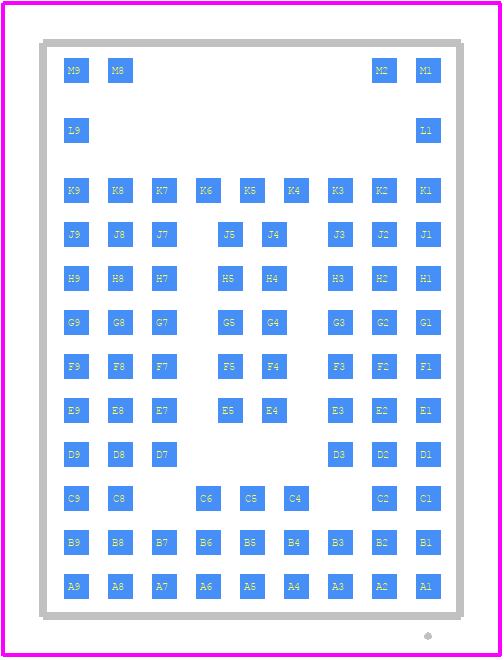

MAYA-W271-00B - u-blox PCB footprint - Other - Other - 86 pins (LGA)
click to zoom
3D Models
MAYA-W271-00B - u-blox - 3D model - Other - 86 pins (LGA)
click to zoom

MAYA-W271-00B Details

  • Manufacturer Part Number:

    MAYA-W271-00B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • Moisture Sensitivity Level:

    4

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

MAYA-W271-00B Frequently Asked Questions (FAQs)

  • u-blox provides a reference design and layout guidelines in their 'MAYA-W2 Module Design Guide' document, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize RF interference.
  • u-blox provides a comprehensive 'MAYA-W2 AT Commands Manual' that details the available AT commands and configuration options. Additionally, the 'MAYA-W2 Integration Manual' provides guidance on integrating the module with your application.
  • The power consumption of the MAYA-W271-00B module varies depending on the operating mode. According to the datasheet, the typical power consumption is around 30mA in active mode, 15mA in standby mode, and <1mA in power-saving mode. However, it's recommended to consult the 'MAYA-W2 Power Consumption Application Note' for more detailed information and guidance on power optimization.
  • The MAYA-W271-00B module is certified for various regions, including FCC, CE, and IC. However, it's essential to ensure that your final product meets the required regulatory certifications. u-blox provides guidance on regulatory compliance in their 'MAYA-W2 Regulatory Compliance Document'. Additionally, you may need to perform additional testing and certification for your specific application.
  • u-blox provides guidance on antenna design and placement in their 'MAYA-W2 Antenna Design Guide'. It's essential to follow these guidelines to ensure optimal RF performance and minimize interference. Additionally, you may need to perform antenna tuning and optimization for your specific application.
