MB2061LS1A03-BA - NKK Switches

MB2061LS1A03-BA Details

• Manufacturer Part Number:

  MB2061LS1A03-BA

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  NKK Switches

• YTEOL:

  0

• Actuator Finish:

  NICKEL

• Actuator Length:

  0.41 inch

• Actuator Travel:

  4.445 mm

• Actuator Type:

  PUSHBUTTON

• Body Breadth:

  12.7 mm

• Body Height:

  43.5864 mm

• Body Length or Diameter:

  13.0048 mm

• Bushing Diameter:

  0.25 inch

• Bushing Length:

  0.335 inch

• Bushing Type:

  1/4-40

• Center Contact Material:

  SILVER ALLOY

• Center Contact Plating:

  GOLD

• Contact (AC) Max Rating R Load:

  6A@125VAC

• Contact Current(AC)-Max:

  6 A

• Contact (DC) Max Power Rating R Load:

  0.4VA@28VDC

• Contact Function:

  ON-(ON)

• Contact Resistance:

  0.02 mΩ

• Contact Voltage(AC)-Max:

  125 V

• Dielectric Withstand Volts:

  1500VAC V

• Electrical Life:

  50000 Cycle(s)

• End Contact Material:

  SILVER

• End Contact Plating:

  GOLD

• Housing Material:

  STAINLESS STEEL

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  DIALLYL PHTHALATE

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -15 °C

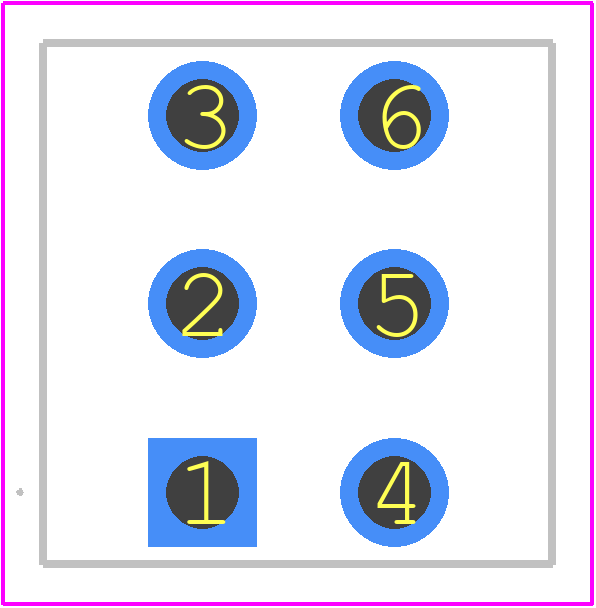

• PCB Hole Count:

  6

• Sealing:

  EPOXY

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  DPDT

• Switch Type:

  PUSHBUTTON SWITCH

• Terminal Finish:

  GOLD OVER SILVER

• Terminal Length:

  0.25 inch

• Termination Type:

  SOLDER
