Part Image

MB85RS4MTYPF-G-BCE1 - Ramxeed

Description: Bit configuration : 524,288 words  8 bits Special Sector Region : 256 words  8 bits In this region, data storage after (by) three times reflow based on JEDEC MSL-3 standard condition is guaranteed. Unique ID Serial Number : 64 bits In this region, data storage after (by) three times reflow based on JEDEC MSL-3 standard condition is guaranteed.

Download MB85RS4MTYPF-G-BCE1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MB85RS4MTYPF-G-BCE1 model

Email notifications will be applied after download.

Send part feedback

Symbol

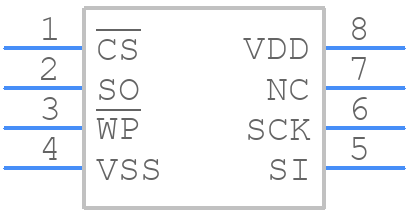

MB85RS4MTYPF-G-BCE1 - Ramxeed - PCB symbol

PCB Footprints

MB85RS4MTYPF-G-BCE1 - Ramxeed PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin plastic SOP

3D Models

MB85RS4MTYPF-G-BCE1 - Ramxeed - 3D model - Small Outline Packages - 8-pin plastic SOP

Datasheet Download Datasheet
Stock & Prices Price & Stock for MB85RS4MTYPF-G-BCE1
Part Number MB85RS4MTYPF-G-BCE1
Manufacturer Ramxeed
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 8-pin plastic SOP
Released Date Sep 3, 2025
Last Modified Date Sep 3, 2025 9:41 AM UTC
Pinout / Pin List Click Here (Member Only)

MB85RS4MTYPF-G-BCE1 Details

Manufacturer Part Number:
MB85RS4MTYPF-G-BCE1
Manufacturer:
RAMXEED

Trust Checks

Community Provided

System Verified

Community Approved

MB85RS4MTYPF-G-BCE1 Overview

Use the download button to access the MB85RS4MTYPF-G-BCE1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MB85R, or try a keyword search, such as FRAMs
