Part Image

MBCM270F338M235A00 - VICOR

Description: Bus Converter Module DC DC Converter 1 Output 33.75V 7A 240V - 330V Input

Download MBCM270F338M235A00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

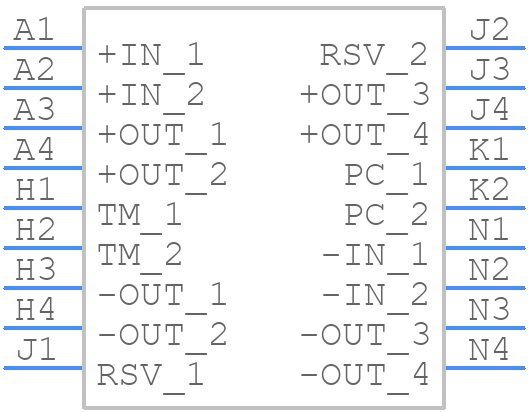

Symbol
MBCM270F338M235A00 - VICOR - PCB symbol
click to zoom

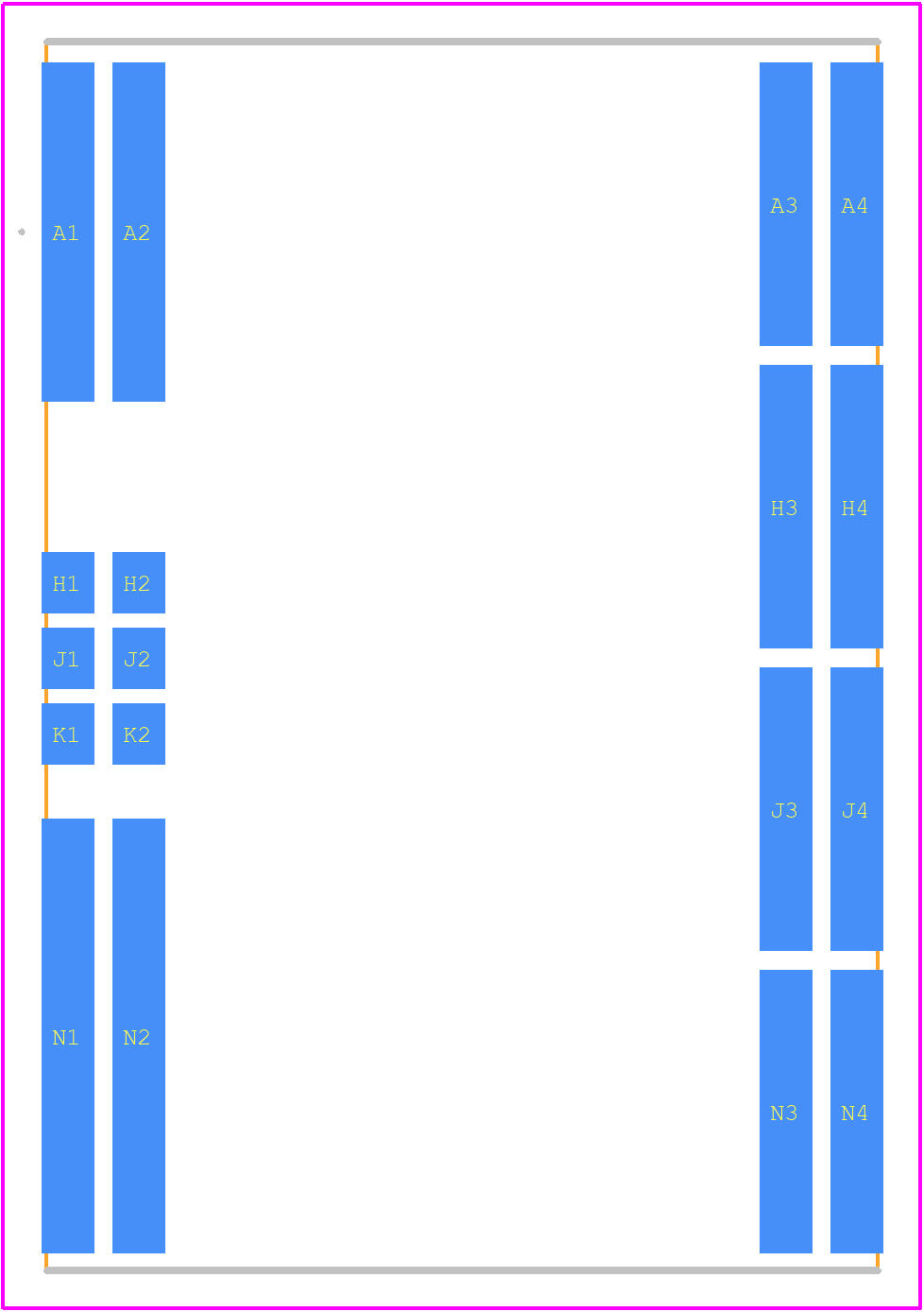

PCB Footprints
MBCM270F338M235A00 - VICOR PCB footprint - Other - Other - 32.5mm x 22.0mm x 6.7mm
click to zoom
3D Models
MBCM270F338M235A00 - VICOR - 3D model - Other - 32.5mm x 22.0mm x 6.7mm
click to zoom

MBCM270F338M235A00 Details

  • Manufacturer Part Number:

    MBCM270F338M235A00

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    PACKAGE-60

  • Pin Count:

    30

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XQMA-J60

  • JESD-609 Code:

    e4

  • Length:

    32.5 mm

  • Moisture Sensitivity Level:

    6

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    60

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QMA

  • Package Equivalence Code:

    MODULE,9LEAD(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    6.98 mm

  • Supply Voltage-Max (Vsup):

    330 V

  • Supply Voltage-Min (Vsup):

    240 V

  • Supply Voltage-Nom (Vsup):

    270 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    J BEND

  • Terminal Position:

    QUAD

  • Width:

    22 mm

MBCM270F338M235A00 Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A thermal interface material (TIM) should be used between the module and the heat sink.
  • To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a shutdown circuit to discharge the output capacitors. The datasheet provides guidelines for these circuits.
  • Input voltage transients can affect the module's performance and reliability. Vicor recommends using input voltage filtering and transient protection to ensure the module operates within its specified input voltage range.
  • Vicor recommends consulting the application notes and design guides provided by Vicor, and working with their technical support team to optimize the module's performance for the specific application.
  • The module's power rating must be derated for high-temperature operation. Vicor provides thermal derating curves in the datasheet, and recommends consulting with their technical support team for specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MBCM270F338M235A00 Overview

Use the download button to access the MBCM270F338M235A00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MBCM2, or try a keyword search, such as Other Signal Circuits
